Caution light surveillance camera set SMART 3

This SMART floodlight camera set comes complete with a recorder, 3 floodlight cameras, cables, and accessories, so you don't need anything else. This user-friendly camera system can be installed both indoors and outdoors and offers convenient features such as live viewing from your smartphone and two-way audio.

How does the SMART warning light camera system work?:
The recorder is the central point in this system's setup. UTP cables run from the recorder to the cameras, a network cable to your router, and an optional HDMI cable to your TV or monitor. The recorder has a built-in hard drive where images are stored continuously or when motion is detected.

Shock light function:
This camera is equipped with two high-power LEDs that can be configured via the recorder to activate, for example, when motion is detected between specific times. This creates a flashlight effect while simultaneously recording. Besides the times for which this function is activated, other settings, such as the intensity, can also be adjusted in the recorder. These high-power LEDs operate independently of the regular night vision LEDs, so even when they are not activated, you have a clear image of up to 20 meters at night.

Two-way audio:
The floodlight camera is equipped with both a microphone and a speaker, allowing it to sound an alarm when motion is detected. You can also use the smartphone app to communicate with anyone near the camera.

Power over Ethernet (POE):
The camera supports Power over Ethernet (POE) and can therefore be connected directly to the recorder using the included UTP network cable. The recorder has a built-in POE switch that directly supplies power to the cameras, with the image and, if applicable, audio also running through the same cable.

Motion detection and recording:
The 4-channel recorder comes with a hard drive and is configured by default to record when motion is detected. With 4 cameras, it can take up to a month on average for the hard drive to fill up. When this happens, the oldest footage will automatically be overwritten.

- Pre-record function:
Even the five seconds before the movement is captured, so you always have the complete event recorded.

- Motion detection distance:
The motion detection works by analyzing the image and therefore works as far as the camera has a view.

- Exclude part from motion detection:
You can select which part of the image the motion detection should or should not detect.

- Exclude portion from recording:
Besides excluding a portion of the motion detection, you can also select a specific area of the image that won't be recorded. You then place a privacy mask over the area you want to block, which will then appear as a black area. This allows you to position the camera as desired without recording sensitive areas or, for example, your neighbors.

- Adjust motion detection sensitivity:
You can specify how much motion must occur before it's detected and recording begins. For example, you can lower the sensitivity if there are too many motion alerts.

- Set times for motion detection:
The recording schedule can be configured to determine per day and time whether recording should take place in the event of movement.

View images via the APP or PC:
The recorder comes with software compatible with Windows, Mac, iPhone, and Android. Connect the recorder to your router using the included network cable, and thanks to the P2P feature, you don't need to adjust any router settings. From then on, you can view both live and recorded footage via the secure server, either from the same location or remotely. Push notifications can be configured to alert you to motion via the app on your smartphone.

Viewing images on a TV (monitor):
The recorder can be connected directly to a TV or other monitor with an HDMI input using the included HDMI cable. The recorder also has a VGA output for use with monitors that don't yet support HDMI.

Optional: Wireless operation via power network with Powerline Adapters:
With the separately available powerline adapters, you can operate the camera wirelessly, eliminating the need to run a cable from the recorder to the camera. The images are then transmitted by the powerline adapters via the electrical wiring. You connect a powerline adapter (receiver) to the recorder using the supplied network cable. Then, you also place a powerline adapter (transmitter) near the camera, which you also connect using the supplied network cable. It doesn't matter whether these powerline adapters are connected to the same group or phase, as long as they are connected to the same meter box.

Install it yourself or have it installed?:
While this wireless camera system is easy to install yourself, you can also have it installed at your location. We're happy to connect you with a specialized company, so their experienced installers can ensure proper operation, adjust the settings to your needs, and provide you with a comprehensive product explanation.

Features of the shock light camera:
- 2 MP lens
- 3D noise reduction
- HDR true-to-life colors
- Fixed lens of 104 degrees
- PIR detection up to 12 meters, 115 degrees
- Night vision up to 20 meters
- 0.05 [email protected], 0 lux with IR on
- 820nm IR LEDs (invisible light beam)
- 2 LED warning lights
- IP 66 Waterproof
- Suitable for indoor and outdoor use (-40°C to +50°C)
- POE (Power over Ethernet)
- 7 cm diameter and 15.1 cm long

Recorder features:
- 4-channel recorder
- Up to 5MP resolution support
- 1TB hard drive built-in
- Privacy mask (cover area with a black area)
- Motion detection with advanced options
- Continuous recording capability
- Disabling recording per camera possible
- Overwrite images when storage is full or periodically
- Back up images via USB stick, computer or smartphone
- Multiple users and rights adjustable
- Live images & playback via monitor, computer
- Live images & playback via smartphone and tablet
- Live images & playback via computer
- Smartphone/tablet app for Apple & Android
- Software for Windows & Mac
- P2P function so that changes to your router/network are not necessary
- Push notification on motion adjustable
- No monthly fees
- Secure servers
The system operates independently of your network. An internet connection is only required if you want to monitor remotely.
- System recovery in case of power failure with notification
- Maximum 24 watts power consumption
- The recorder has the following connections
- 1 x UTP with PoE (max. 4 cameras)
- 1 x UTP (internet or 4G router)
- 1 X HDMI
- 1 X VGA
- 2 x USB
- 1 x relay (with alarm in/out)
- 1 x audio line-out
- 1 x power supply 48 V

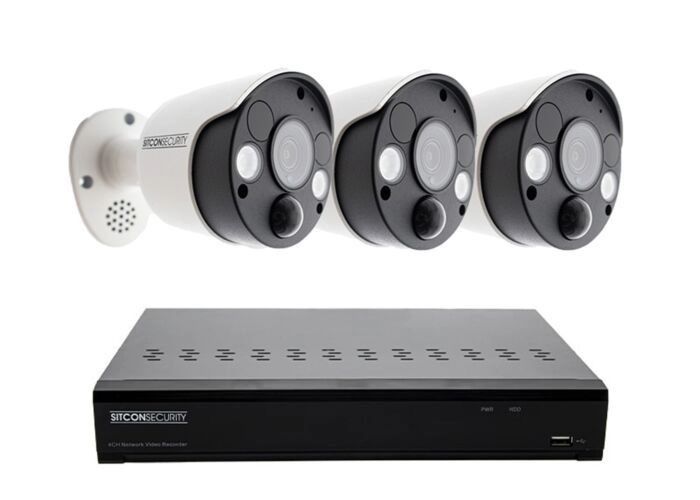

Package contents:
1 x 4-Channel Recorder - SMART
3 x Shock light camera - SMART
3 x 20 meter UTP cable (other lengths on request)
Screws and plugs cameras
All necessary accessories
Manual
