Driveway indicator PIR + Beam combination set Solar Line PLUS
Driveway indicator PIR + Beam combination set Solar Line PLUS
Driveway indicator PIR + Beam combination set Solar Line PLUS
- Klanten beoordelen ons met een 8.6 op basis van 621 reviews
- Experienced customer service and 2 year warranty
- Specialist since 2007
Specifications: Driveway indicator PIR + Beam combination set Solar Line PLUS
Conformity | CE |
---|---|
Detector | Movement |
Alarm type | Driveway alert |
Alarm notification | Call signal |
Smartphone APP | No |
Battery | Yes |
Battery type | Li-ion recharchable |
Battery working time | 3 - 6 months |
Max. wireless sensors | 4 Wireless sensors |
Wireless frequency | 433 Mhz |
Waterproof | Yes |
SKU | 9250 |

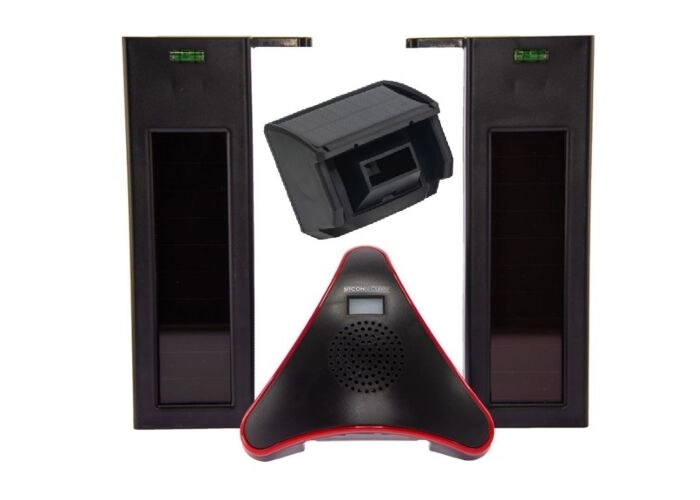

This driveway detector set combi PLUS with a PIR motion detector and an IR beams set is very suitable for use as a driveway motion detector. When the PIR detector detects movement within a radius of 15 meters, a signal will be sent to the wireless receiver. This works the same with the IR beams, but when the IR beam is broken, the receiver will then produce a signal you set, such as a ringtone.
How does the Driveway Detector - PIR detector work:

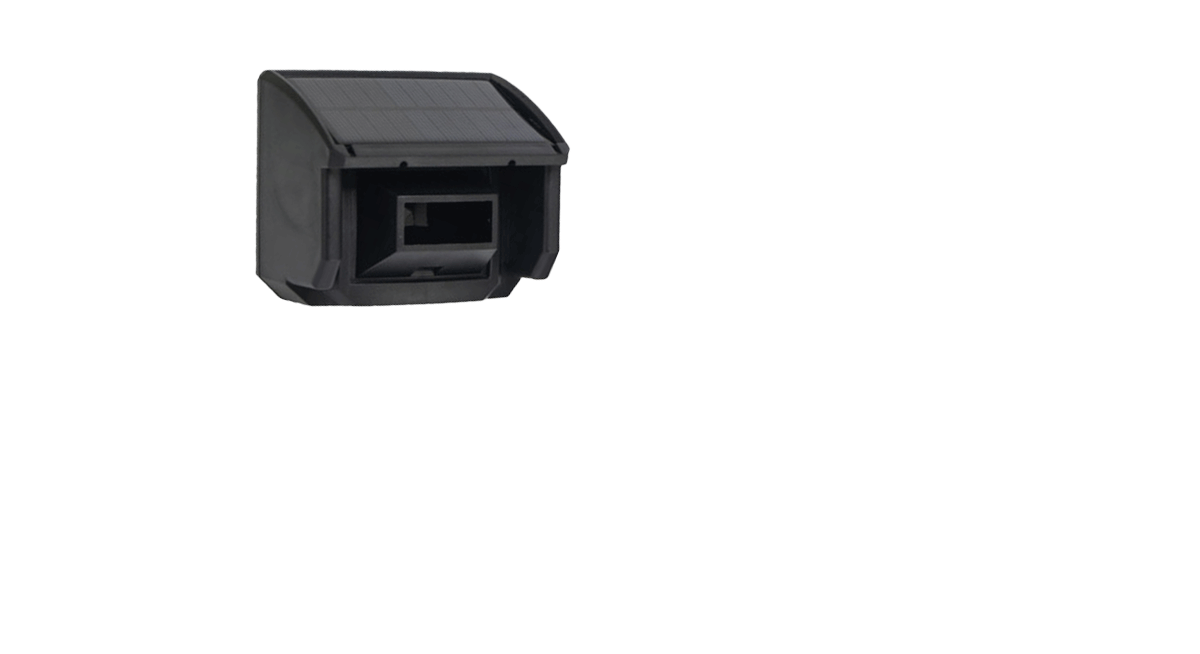

The PIR motion detector is waterproof and has a detection range of 15 meters. When movement is detected by the PIR sensor, it will send a wireless signal to the receiver. The receiver can be placed at a distance of up to 100 meters.
How does the driveway detector work - IR Beams detector set:
Place the wireless IR beams directly opposite each other at a distance of up to 400 meters from the base station, with a maximum distance of 60 meters between the beams. When the infrared beam is broken, the wireless beams will send a message to the base station, which will then give you a ringing signal.
Wireless receiver operation:
The wireless receiver can be set to 35 different tones and 4 volume levels. Up to 32 sensors can be linked to a receiver. The wireless receiver must be supplied with power using the supplied adapter. Optionally, use of up to 100 hours is possible on a rechargeable backup battery when you install 4 AA batteries.
Installation of wireless PIR motion detector
The detection distance of this PIR sensor is up to 15 meters depending on the placement angle. The PIR sensor comes with a flexible bracket, making it easy to adjust. The detection angle of this product is set very narrow at 15 degrees so that it can be seen as a beam that must be broken before the sensor sees it as movement. This reduces the risk of false alarms.
Installation of wireless IR beams:
There are 2 IR emitters on the beams. Both of these must be broken simultaneously to give a notification. There are viewing holes in the beams to adjust the beams to the same height. This can be done with the naked eye up to 30 meters, but at more than 30 meters you will need a laser pointer or laser level to set this correctly. For example, if cyclists pass by at normal speed and need to be detected, it is important that the beams are at average saddle height. At higher speeds than 20 km per hour of cars / cyclists, etc., the beams will not register all movements.
Battery and solar panel operation:
The motion detectors have a solar panel that charges the built-in battery when there is sufficient sunlight. For proper operation, the solar panels must receive sufficient light. In poor lighting conditions, the battery of motion detectors may need to be recharged periodically. We supply a 12 volt adapter for this, so that you can do this yourself when necessary.
Can be optionally connected to an existing alarm system:
If you want to connect this visitor detector to an existing alarm system, this cannot be done directly wirelessly. This is because this driveway detector transmits on a specially tuned frequency. It is possible to use the wireless relay which can be ordered with this product under the accessories heading. The wireless relay then works as an extra receiver and can then be connected by wire to a free alarm port of the alarm system. When the sensor then gives a message, this will also be passed on to the alarm system.
Base station features:
- Up to 4 beam sets can be linked
- Supplied with wall bracket
- Adjust volume and signal
- Works on a 5 volt 1.5 amp adapter
- 433Mhz FSK + FHSS
- 433Mhz FSK + FHSS
- Possibility to install 4 AA batteries as a backup
- Works up to 100 hours on 4 AA batteries
IR beam properties:
- 433MHz FSK + FHSS
- Up to 60 meters infrared distance between beams
- Up to 500 meters transmission range to base station
- IP 66 waterproof
- Works both day and night.
- Built-in spirit level for correct placement
- Flexible mounting pieces
- From -30 to 70 degrees working temperature
- Battery charges via solar panel
PIR motion detector features:
- 433MHz FSK + FHSS
- Up to 15 meters motion detection distance
- 15 degrees detection angle
- Up to 100 meters transmission range to base station
- IP 66 waterproof
- Works both day and night.
- Built-in battery and solar panel
- Battery charges via solar energy
- Flexible mounting pieces
- From -30 to 70 degrees working temperature
- 92 x 103 x 90mm
Package contents:
1 x Receiver base station
1 x PIR sensor PLUS
1 x IR beam detector set PLUS
1 x Bracket PIR motion sensor
1 x Brackets IR beams
2 x Adapter
