Driveway indicator PIR Solar Line PLUS

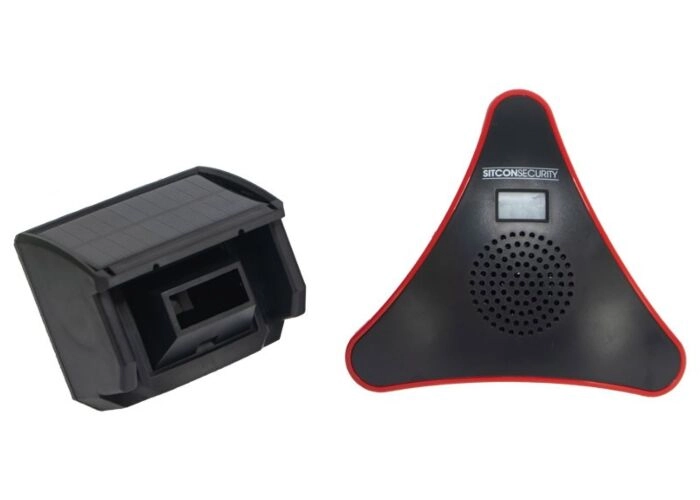

This Solar line PLUS driveway detector set consists of a PIR motion detector and wireless receiver. This driveway detector set is very suitable for use as a visitor detector. When the PIR motion detector detects movement within a radius of 15 meters, a signal will be sent to the wireless receiver. This will then produce a signal you have set such as a ringtone.

Applications driveway indicator PIR Solar line:
Although the most common application of this product is as a driveway / visitor detector, the possible applications are of course much wider. For example, this motion alarm can also be used as a visitor detector in a store or warehouse and even for certain care applications.

How does the PIR Solar line driveway indicator work:
The motion detector can be placed outdoors or indoors at a distance of up to 200 meters from the wireless receiver. The motion detector is supplied with mounting screws and adjustable base for positioning at the correct angle.

Wireless receiver operation:
The wireless receiver can be set to 35 different tones and 4 volume levels. Up to 32 sensors can be linked to a receiver. The wireless receiver must be supplied with power with the supplied adapter. Optionally, battery operation is possible when you insert 4 AA batteries.

Operation PIR motion detector Solar line:
The detection distance of this PIR sensor is up to 15 meters depending on the installation angle and set sensitivity. The PIR sensor comes with a flexible bracket which makes it easy to adjust. The detection angle with this product is set very narrow at 15 degrees so that it can be seen as it were as a beam that must be broken before the sensor sees it as movement. This reduces the risk of false alarms.

Operation of the battery and solar panel:
The PIR motion detector has a solar panel which charges the built-in battery when there is sufficient sunlight. For proper operation, the solar panel must get enough light. In less light conditions, the motion detector's battery may need to be periodically recharged. We supply a 12 volt adapter for this, so that you can do this yourself when necessary.

Install extra sensors and receivers.
This motion alarm can be expanded with additional receivers and detectors. For example, you can place a motion detector near your front and back garden. The other way around is also possible with an extra receiver. for example, you can place an extra wireless receiver in your garage so that you also receive notifications in case of movement there. All sensors from the PLUS line are compatible with this system.

Optionally connectable to existing alarm system:
If you wish to connect this visitor detector to an existing alarm system, this cannot be done wirelessly. This is because this driveway indicator transmits on a specially tuned frequency. However, it is possible to use the wireless relays which can be ordered with this product under the heading accessories. The wireless relay then works as an extra receiver and is then wired to connect to a free alarm port of the alarm system. When the sensor gives a message, this will also be passed on to the alarm system.

Base station features:
- Link up to 32 sensors
- Can be placed horizontally or on a wall
- Volume and signal can be set
- Operates on a 5 volt 1.5 ampere adapter
- 433 Mhz FSK + FHSS
- Possibility to place 4 AA batteries for battery use

Features PIR motion detector Solar line:
- 433 MHz FSK + FHSS
- Up to 15 meters of motion detection distance
- Sensitivity adjustable in High, Medium, Low
- 15 degrees of detection angle
- Up to 200 meters wireless distance to base station
- IP 66 waterproof
- Works both during the day and at night.
- Built-in battery and solar panel
-> 100mA charging capacity on sunny days
- Battery charges via solar energy
- Flexible mounting pieces
- Static power consumption <1mA
- Alarm power consumption <100mA
- From -30 to 70 degrees working temperature
- 103 mm wide by 92 mm high
- 90 mm deep + 45 mm base

Package contents:
1 x Receiver driveway indicator
1 x PIR sensor with solar panel and battery
1 x Bracket
1 x Adapter
