Wireless receiver portable model PLUS
Wireless receiver portable model PLUS
- Customers rate us 8.6 based on 734 reviews
- Experienced customer service and 2 year warranty
- Specialist since 2007. Member of Thuiswinkel Waarborg
Specifications: Wireless receiver portable model PLUS
| Conformity | CE |
|---|---|
| Alarm type | Wireless systeem |
| Siren | External optional |
| Alarm notification | Siren |
| Decibel alarm | 80 - 100 decibel |
| Smartphone APP | No |
| Battery | No |
| Battery type | Li-ion recharchable |
| Battery working time | 8 - 12 hours |
| Max. wired sensors | N/A |
| Max. wireless sensors | 12 Wireless sensors |
| Transmit distance | N/A |
| Waterproof | No |
| Adapter voltage | 5 volt |
| Length cm | 151 |
| Height cm | 101 |
| Wide cm | 16 |
| SKU | 6048 |

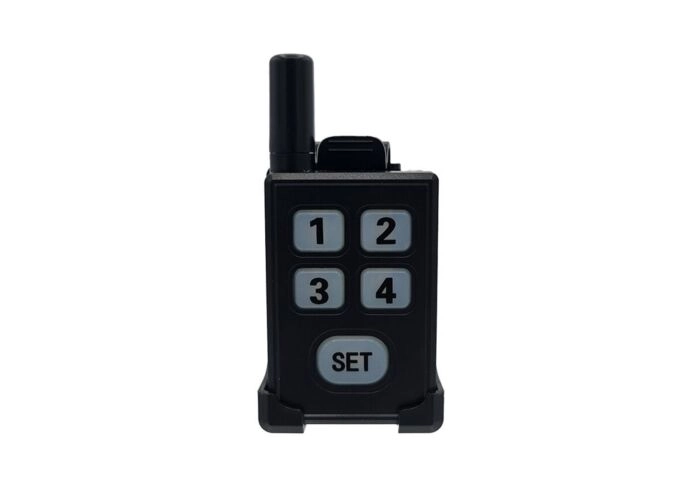

The portable wireless receiver is an extension or replacement for the PLUS line of wireless alarm systems. This compact receiver is powered by an internal battery and can therefore be used anywhere, without a power outlet. Ideal if you also want to receive notifications from a connected sensor in the garage, garden, or outbuilding. This is the most versatile model in the PLUS line, thanks to its combination of portability and battery power.
Key Features:
This receiver supports up to 32 wireless detectors and emits an audible tone upon detection. Volume and tone are fully adjustable. Thanks to its rechargeable battery, the receiver can be used standalone for up to 7 days.
– Portable model with internal battery (3.7V)
– Up to 32 sensors can be connected
– Adjustable volume, tone and vibration signal
– Rechargeable via USB (cable included)
– Up to 7 days of operation on a single charge
– 433 MHz FSK + FHSS wireless technology
– Compact design for flexible use
Applications
The portable wireless receiver is perfect for receiving notifications in areas without a power outlet. It's also handy as a portable receiver to take with you while working.
- Reporting point in garage, garden shed or outbuilding
– Mobile receiver during work or supervision
- Additional receiver for temporary use
Installation and use
The receiver is charged via the included USB cable. Pairing detectors is easy using the learning function. You can set a separate volume and audible signal for each paired detector. Thanks to the battery, this receiver can be placed anywhere you like.
Connecting reporters
Press and hold the SET button for about 10 seconds until you hear a beep. Then press the SET button three times to activate setup mode. Select a channel button (1 through 4) and activate the desired alarm. A beep confirms the pairing.
– Green flashing light = setting mode active
– Green constant light = detector successfully paired
Volume and notification settings
Press and hold the SET button briefly and then press one of the channel buttons to select the desired volume/vibration signal:
– Channel 1 = Vibrate only
– Channel 2 = Vibrate + low volume
– Channel 3 = Vibrate + medium volume
– Channel 4 = Vibrate + high volume
Remove reporters
Repeat the pairing procedure and hold the button for the channel you want to delete for 5 seconds until the green light goes out. The paired detector is now deleted.
Battery status and charging
– Red flashing light = battery low
– Red constant light = charging
– Green light = fully charged
Technical specifications:
– Number of supported reporters: 32
– Sound signal: adjustable per detector
– Power: 3.7V lithium battery (rechargeable)
– Usage time: up to 7 days on a full charge
– Charging via USB (cable included)
– Frequency: 433 MHz FSK + FHSS
– Use: indoors or temporarily outdoors
– Color: white
Package contents:
– Wireless receiver portable model
– USB charging cable
- Manual
Sitcon: your reliable partner since 2007
Since 2007, Sitcon has been supplying reliable indoor and outdoor security products. We test all our products for quality, durability, and ease of use. You're always welcome to visit our stores in Nieuwegein (NL) or Maaseik (BE) for personalized advice.
Frequently Asked Questions about the Wireless Receiver Portable Model
Does this receiver require a power supply?
No, this portable model runs on an internal rechargeable battery. You can use it without a wall outlet and charge it via USB.
How long does the battery last?
When fully charged, the receiver will last up to 7 days, depending on usage and the number of notifications. It can then be recharged using the included USB cable.
How many detectors can I connect?
You can connect up to 32 wireless detectors from the PLUS line. Each detector can have its own audible signal for identification.
Can this receiver also be used outdoors?
The receiver is suitable for indoor use or temporary covered outdoor use. Prolonged exposure to moisture is not recommended.
Can I use multiple receivers with the same detectors?
Yes, you can connect multiple receivers to the same notifications. This allows you to receive notifications in different locations simultaneously.
