Fisheye 360º security camera set SMART 1
Video: Fisheye 360º security camera set SMART 1
Pros and cons : Fisheye 360º security camera set SMART 1
- Latest generation recorder and camera where video and power run via UTP network cable (POE).
- Both watching live images and reviewing the images possible on a smartphone
- 360Âº IP66 waterproof camera lens with virtual PTZ.
- Easy to install yourself.
- No Wi-Fi. Can be made wireless with our Powerline adapters.
- No audio.
Description: Fisheye 360º security camera set SMART 1

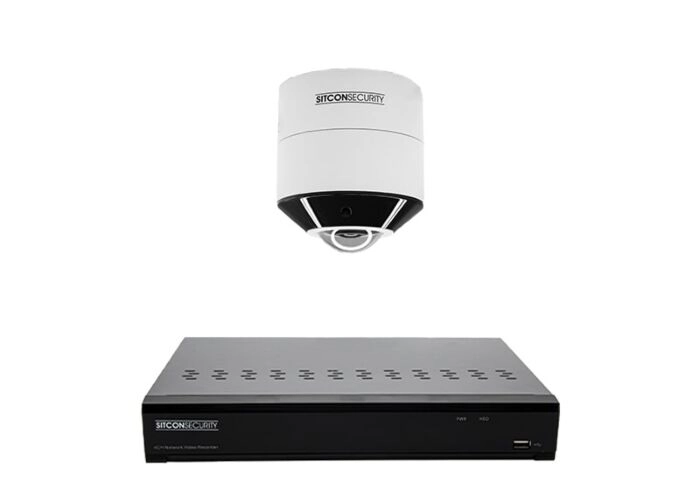

This Fisheye 360Âº camera set SMART consists of a recorder and fisheye security camera. The Fisheye 360Âº camera has a compact size, waterproof housing, Power over Ethernet (POE) and a 360Âº camera lens. The recorder has a built-in power over ethernet (POE) switch, smartphone APP with P2P cloud technology, dropbox storage and much more. The ease with which this camera system can be put into use makes it suitable for everyone to install themselves. Furthermore, this camera system can easily be made wireless with our Powerline adapters.
Compact housing Fisheye 360Âº camera:
The compact housing of this VR Fisheye 360Âº camera makes it possible to mount the camera on a ceiling or wall.
360 degree lens VR Fisheye camera:
The 360 degree lens ensures that the area that can be monitored is very large. For example, when this camera is hung in the middle of a room, you can get an equal view of the entire room.
PTZ control VR Fisheye 360Âº camera:
The Fisheye 360Âº camera is easy to operate from the recorder. For example, you can choose between different views where the image can be shown as one round or in all different screens. You can also zoom and rotate the image per corner, just like with a PTZ camera.
Night vision up to 5 meters VR Fisheye 360Âº camera:
The fisheye camera has 3 IR LEDs with which you can still film up to about 5 meters in the dark. During the day the images are in color and in the dark when the IR LEDs turn on the images are in black and white.
Power over Ethernet VR Fisheye 360Âº camera:
The fisheye camera supports power over ethernet (POE) and can therefore be connected directly to our Sitcon recorders with a UTP network cable. The Sitcon recorders have a built-in POE switch which provides the cameras with direct power and whereby the image and possibly sound also run via the same cable.
Motion Detection and Recording:
The recorder with 4 channels comes with a hard disk and is set as standard to record during movement. With 4 cameras, it takes an average of up to a month before the hard disk fills up. When this happens, the oldest images will be automatically overwritten.
- Pre-record function:
Even the five seconds before the movement are recorded, so that you have always recorded the complete events.
- Motion Detection Distance:
The motion detection works by means of analysis of the image and thus works as far as the camera has a view.
- Exclude part from motion detection:
You can select which part of the image the motion detection should or should not detect.
- Exclude part from recording:
In addition to excluding a part of the motion detection, it is also possible to select a specific area in the image that will not be recorded. You then place a privacy mask over the part you wish to block, which will then be seen as a black area. This way you can aim the camera as you wish without recording privacy-sensitive parts or, for example, your neighbors.
- Adjust motion detection sensitivity:
You can specify how much motion must occur before it is detected and recording starts. For example, you can lower the sensitivity when there are too many motion notifications.
- Set times for motion detection:
The recording schedule is adjustable in such a way that it can be determined per day and time whether it should be recorded during movement.
Viewing images via the APP or PC:
Software is included with the recorder which is suitable for Windows, Mac, iPhone and Android. You can connect the recorder to your router with the included network cable and the P2P function means you don't have to adjust any settings in your router. Via the secure server you can from that moment view the live images, but also the recorded images from the same location, but also remotely. If desired, a push notification can be set so that you receive a notification via the APP on your smartphone in case of movement.
Viewing images on a TV (monitor):
The recorder can be connected directly to a TV or other monitor with HDMI input using the supplied HDMI cable. The recorder also has a VGA output for use with monitors that do not yet support HDMI.
Optional: Wireless operation via power network with Powerline Adapters:
With the separately available powerline adapters it is possible to operate the camera wirelessly, so that no more cables have to be run from the recorder to the camera. The images are then sent by the Powerline adapters via the power grid. You place a powerline adapter (receiver) with the supplied network cable on the recorder. You then also place a powerline adapter (transmitter) near the camera, which you also connect with the included network cable. With these powerline adapters it does not matter whether the powerline adapters are connected in the same group or phase as long as they are behind the same meter cupboard.
Install yourself or have it installed ?:
Although this wireless camera system is easy to install yourself, you can of course also have the system installed at your location. We are happy to put you in touch with a specialized company, so that their experienced installers ensure proper operation, adjust the settings to your wishes and provide you with an extensive product explanation.
1 x Recorder with 4 channels - SMART
1 x Fisheye camera - SMART
1 x 20 meter UTP cable (other lengths on request)
Screws and plugs cameras
All necessary accessories
Specifications: Fisheye 360º security camera set SMART 1
|Camera type:||Camera set wired, Camera set Wireless|
|Number of cameras:||1 Camera|
|Resolution:||2048 x 1536 (1,5x Full HD)|
|Looking from a distance:||Yes|
|Nightvision:||0 - 5 Mtr|
|View angle:||360 °|
|Filming through glass:||No|
|Software / APP:||Windows, OS X, iOS, Android|
|Video out:||UTP (POE)|
|Recording function:||Cloud, Hard drive|
|Max. memory:||2 TB|
|Meegeleverd geheugen:||1 TB|
|Motion detection:||Post motion, Pre motion, Yes|
|Alarm notification:||Push notification, E-mail|
|Length cm:||65 mm|
|Height cm:||75 mm|
|Wide cm:||65 mm|
