Wireless light barrier 2-beam model PLUS
Wireless light barrier 2-beam model PLUS
- Customers rate us 8.6 based on 731 reviews
- Experienced customer service and 2 year warranty
- Specialist since 2007. Member of Thuiswinkel Waarborg
Specifications: Wireless light barrier 2-beam model PLUS
| Conformity | CE |
|---|---|
| Detector | IR beam |
| Siren | No |
| Decibel alarm | N/A |
| Smartphone APP | No |
| Battery | Yes |
| Battery type | Li-ion Solar |
| Battery working time | 3 - 6 months |
| Max. wired sensors | N/A |
| Max. wireless sensors | N/A |
| Wireless frequency | 433 Mhz |
| Transmit distance | 50 - 100 Mtr. |
| Waterproof | Yes |
| Adapter voltage | N/A |
| SKU | 7614 |
Pros and cons :
- Completely wireless with solar panel, so no cabling required
- Detects motion up to 60 meters between beam units
- Easy to connect to all PLUS receivers from Sitcon
- Less accurate than the 3-beam model, especially in wind or partial movements

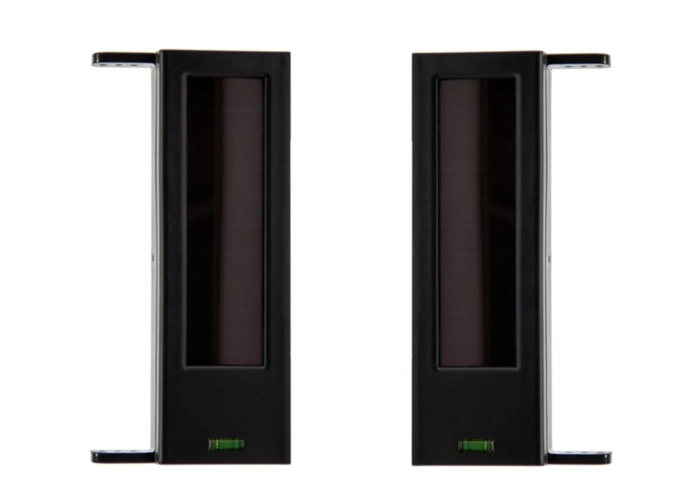

The wireless 2-beam PLUS light barrier consists of two waterproof sensors that transmit invisible infrared beams to each other. If someone interrupts this invisible beam, a notification is sent wirelessly to one of the compatible PLUS receivers. Thanks to the built-in solar panel on both units, there's no need for wiring or power, making installation exceptionally easy.
Key Features:
This light barrier consists of a transmitter and receiver that can be placed up to 60 meters apart. The beam is interrupted by motion, after which a notification is immediately sent via one of the PLUS receivers. This model uses two IR beams and is therefore less accurate than the three-beam model, but is still very suitable for driveways up to approximately 40 meters wide.
– 2 infrared beams with a range of 60 meters
– Compatible with all PLUS receivers
– Works wirelessly with a range of up to 400 meters
– Powered by solar panel with rechargeable battery
– Waterproof (IP66) and suitable for outdoor use
– Built-in spirit level for precise alignment
Applications
The light barrier is ideal for applications where you want to detect vehicles or people undetected. It's often used for driveways, passageways, walkways, or perimeter security. Thanks to its wireless design, installation is also possible in locations without a power supply.
- Driveway alarm for homes or businesses
- Detection of vehicles or persons on site
- Securing walkways or access gates
Installation and alignment
For reliable operation, the two units must be positioned directly opposite each other. For distances greater than 10 meters, we recommend using a laser pointer during installation. Mounting is easy thanks to the included brackets and built-in spirit level.
Solar powered operation
The built-in battery in both units is automatically charged by the solar panel. During prolonged cloud cover or shady locations, it may be necessary to temporarily charge the unit using an optional 12V adapter (not included).
Connection with PLUS receivers
The light barrier can be wirelessly connected to all receivers in the PLUS line. Do you also want to forward the notification to an existing alarm system? Then use the "Wireless receiver relay model PLUS" to transmit the signal via cable to your control panel.
Technical specifications:
– Number of IR rays: 2
– Maximum distance between units: 60 meters
– Wireless range to receiver: 400 meters (open field)
– Power supply: solar panel with internal rechargeable battery
– Frequency: 433 / 230 MHz (paired signal)
– Waterproof: IP66
– Temperature range: -30°C to +70°C
– Includes integrated spirit level
– Color: black
Package contents:
– 2 x Wireless IR beams (60 meters)
– 4 x Mounting brackets
– 1 x Manual
– No base station or adapter included
Sitcon: your specialist in driveway and site security since 2007
At Sitcon, you're guaranteed practical and reliable security solutions. All our products are extensively tested in the field. For questions or advice, you're always welcome to visit our stores in Nieuwegein (Netherlands) and Maaseik (Belgium).
Frequently asked questions about the wireless light barrier 2-beam model PLUS
What is the difference with the 3-beam model?
The 3-beam model is more accurate and more resistant to wind, animals, or falling leaves. The 2-beam model is ideal for simple applications with shorter distances.
Do I need a receiver to use this?
Yes, this transmitter only works in conjunction with a PLUS receiver, such as the tabletop, portable, or relay model. You can connect multiple detectors to a single receiver.
How are the sensors powered?
The light barrier is solar-powered and charges an internal battery. In low sunlight, you can recharge the units with an optional 12V adapter.
Can I connect this to my existing alarm system?
Yes, via the wireless relay receiver PLUS you can forward the signal to an existing alarm system or controller with an alarm input.
What is the ideal height for installation?
Place the units at a medium height (approx. 80–100 cm). Note that for longer distances, a full body penetration is required to activate the signal.
