Cube security camera set EASY 5
Video: Cube security camera set EASY 5
Pros and cons : Cube security camera set EASY 5
- Latest generation recorder and camera, where video and power run via UTP network cable (POE).
- Both watching live images and reviewing the images possible on a smartphone.
- Recording on built-in hard disk and Cloud recording possible via Dropbox.
- Easy to install yourself, but installation is also possible.
- Only suitable for indoor use (not waterproof)
Description: Cube security camera set EASY 5

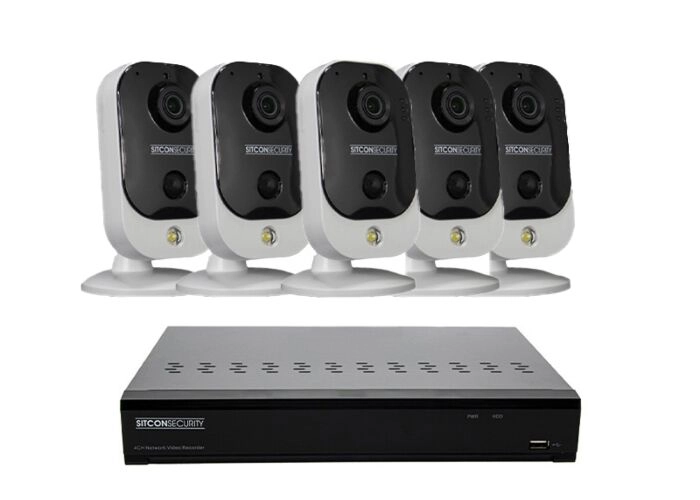

This cube security camera set EASY comes complete with recorder, 5 cube indoor cameras, cables and accessories. So you receive everything you need to connect this system yourself. This user-friendly camera system has useful functions such as two-way audio, motion detection and you can watch live from your smartphone.
How does the cube camera system EASY work ?:
The recorder is the focal point in the setup of this system. For example, the UTP cables run from the recorder to the dome cameras, a network cable to your router and optionally an HDMI cable to your TV or monitor. A hard disk is built into the recorder where the images are stored continuously or during movement.
Power over Ethernet (POE):
The cube camera supports power over ethernet (POE) and can therefore be connected directly to the recorder with the supplied UTP network cable. The recorder has a built-in POE switch which directly supplies the cube cameras with power and whereby the image and possibly sound also run via the same cable.
Motion Detection and Recording:
The recorder with 8 channels comes with a hard disk and is set as standard so that it records during movement. On average, it takes up to a month for the hard disk to fill up. When this happens, the oldest images will be automatically overwritten.
- Pre-record function:
Even the five seconds before the movement are recorded, so that you have always recorded the complete events.
- Motion Detection Distance:
The motion detection works by means of analysis of the image and thus works as far as the camera has a view.
- Exclude part from motion detection:
You can select which part of the image the motion detection should or should not detect.
- Exclude part from recording:
In addition to excluding a part of the motion detection, it is also possible to select a specific area in the image that will not be recorded. You then place a privacy mask over the part you wish to block, which will then be seen as a black area. This way you can aim the camera as you wish without recording privacy-sensitive parts or, for example, your neighbors.
- Adjust motion detection sensitivity:
You can specify how much motion must occur before it is detected and recording starts. For example, you can lower the sensitivity when there are too many motion notifications.
- Set times for motion detection:
The recording schedule is adjustable in such a way that it can be determined per day and time whether it should be recorded during movement.
Viewing images via the APP or PC:
Software is included with the recorder which is suitable for Windows, Mac, iPhone and Android. You can connect the recorder to your router with the included network cable and the P2P function means you don't have to adjust any settings in your router. Via the secure server you can from that moment view the live images, but also the recorded images from the same location, but also remotely. If desired, a push notification can be set so that you receive a notification via the APP on your smartphone in case of movement.
Viewing images on a TV (monitor):
The recorder can be connected directly to a TV or other monitor with HDMI input using the supplied HDMI cable. The recorder also has a VGA output for use with monitors that do not yet support HDMI.
Optional: Wireless operation via power network with Powerline Adapters:
With the separately available powerline adapters it is possible to operate the camera wirelessly, so that no more cables have to be run from the recorder to the camera. The images are then sent by the Powerline adapters via the power grid. You place a powerline adapter (receiver) with the supplied network cable on the recorder. You then also place a powerline adapter (transmitter) near the camera, which you also connect with the included network cable. With these powerline adapters it does not matter whether the powerline adapters are connected in the same group or phase as long as they are behind the same meter cupboard.
Install yourself or have it installed ?:
Although this wireless camera system is easy to install yourself, you can of course also have the system installed at your location. We are happy to put you in touch with a specialized company, so that their experienced installers ensure proper operation, adjust the settings to your wishes and provide you with an extensive product explanation.
Properties Cube camera - EASY:
- 2MP HD 1920 x 1080 pixels resolution
- 3D noise reduction
- HDR true-to-life colors
- Fixed 90 degree lens
Microphone and speaker for two-way audio
- Night vision up to 10 meters (Infrared light beam not visible)
- POE (Power over Ethernet)
- Only suitable for indoor use (not waterproof)
- Wall and wall mounting suitable
1 x Recorder with 8 channels - EASY
5 x Cube cameras - EASY
5 x 20 meter UTP cable (other lengths on request)
Screws and plugs cameras
All necessary accessories
Specifications: Cube security camera set EASY 5
|Camera type:||Camera set wired|
|Number of cameras:||5 Camera's|
|Resolution:||1920 x 1080 (Full HD)|
|Looking from a distance:||Yes|
|Nightvision:||5 -10 Mtr|
|View angle:||90 - 95 °|
|Filming through glass:||No|
|Software / APP:||Windows, OS X, iOS, Android|
|Video out:||UTP (POE)|
|Recording function:||SD card, Hard drive|
|Max. memory:||4 TB|
|Meegeleverd geheugen:||2 TB|
|Alarm notification:||Push notification|
|Audio:||Yes, Yes, two way|
