Ajax Hub 1 Wireless Alarm System Deluxe Black SMART

This Ajax Hub 1 Deluxe Alarm Kit - Black is a complete, high-quality, smart wireless alarm system made in the EU. It comes with a base station, two PIR motion detectors, two magnetic contacts, an indoor siren, a keypad, and a remote control.

How does the Ajax alarm system work:
The Hub is the central hub of this Ajax alarm system. This box connects to the power supply and your router with a network cable. A SIM card can also be optionally inserted into the Hub so that an alarm can still be triggered if the internet signal is lost, allowing the system to be used in locations without internet access. The Hub connects wirelessly to the various battery-powered components. The wireless connection in this alarm system uses the secure Jeweller protocol. This establishes a two-way connection between the base station and the components, increasing security. When a sensor sends an alarm notification to the base station, the Hub signals the siren to sound and simultaneously sends an alarm notification to you and any other users on your phone.

Install it yourself or have it installed?:
While this alarm system is easy to install yourself, you can also have it installed at your location. We're happy to connect you with a specialized company, so their experienced installers can ensure proper operation, adjust the settings to your needs, and provide you with a comprehensive product explanation.

Setting up the Hub 1:
You configure the Hub and accessories to your desired settings using the smartphone app. This app, available in several languages, including Dutch, French, and German, guides you step-by-step through setting up the alarm system. Once you've fully configured the system, you can operate it via the same app or the remote control.

Operation of MotionProtect PIR motion detector:
The MotionProtect is a battery-powered, wireless PIR motion detector that sends a signal wirelessly to the hub when motion is detected. The motion detector has a detection range of up to 12 meters, three sensitivity levels, and is unaffected by pets weighing up to 20 kg and up to 50 cm tall.

Operation of DoorProtect magnetic contact:
The DoorProtect is a wireless magnetic contact detector that can be installed on a window or door. When the magnets separate, the DoorProtect sends a wireless signal to the Hub. Thanks to the powerful magnets, they can be placed up to 2 cm apart.

SpaceControl remote control operation:
The SpaceControl is a remote control for the alarm system. Besides buttons to arm and disarm the alarm, this remote also has an SOS button. When this button is pressed, the alarm will sound immediately, even if it's not armed.

Operation Homesiren Indoor siren:
The Homesiren is a wireless indoor siren for your alarm system that sounds when the alarm is triggered and also notifies you when armed or disarmed. The siren can be adjusted via the app between 81 and 105 decibels. An optional outdoor siren is also available, which can produce a higher decibel level and is IP67 waterproof.

KeyPad Operation:
The KeyPad is a wireless control panel for the alarm system that allows you to arm and disarm the system without using the App or remote control.

Wireless but secure:
While other wireless alarm systems risk jamming or signal interference, the SMART alarm system has a special feature to address this. Communication between the Hub and the detectors is two-way. This means that every 12-300 seconds (configurable) a check is made to ensure the detectors are still responding. If a connection is lost, the system will trigger an alarm.

Expanding the Ajax alarm system:
The alarm system offers extensive expansion options. Up to 100 detectors and up to 10 surveillance cameras can be connected to the Hub base station. See the recommended expansion options in the accessories section below, or contact us for a tailored proposal.

Optional: Inserting a (backup) SIM card:
Optionally, a SIM card can be inserted into the Hub so that an alarm can still be triggered if the internet signal is lost. We supply specific SIM cards for this purpose, which you can find under the "Accessories" section. This SIM card ensures that the system can still be used if the internet connection is lost or if you don't have a fixed internet connection at the location.

Expanding the Ajax alarm system:
The alarm system offers extensive expansion options. The Hub base station can connect up to 100 detectors and up to 10 surveillance cameras. There are also various Hubs, each with its own features. See the recommended expansion options under accessories below, or contact us for a suitable proposal.

Features Ajax alarm system Deluxe:
- Works with Ethernet cable connection to your router
- Also works on 2G SIM card
- Android and iOS smartphone App
- No subscription fees
- Connect up to 100 sensors
- Up to 50 users can be configured
- Can be set up to 50 rooms
- Up to 9 groups can be set
- Alarm signal within 0.15 seconds
- SMS message*, call*, or push notification in case of alarm. *When inserting a SIM card
- ARM processor
- 110 - 240 volt power supply via adapter
- Base station backup battery up to 15 hours
- Remote control battery life up to 5 years
- Motion detector battery life up to 7 years
- Magnetic contact battery life up to 7 years
- HomeSiren battery life up to 5 years
- KeyPad battery life up to 2 years
- AES encryption between host and sensors
- Up to 200 meters range between sensors in open space
- 868.0 - 868.6 MHz frequency sensors
- Wireless Jeweller protocol
- Grade 2 certified
- Protection against sabotage and jamming/signal disruption
- Connect up to 10 cameras
- Made in the EU

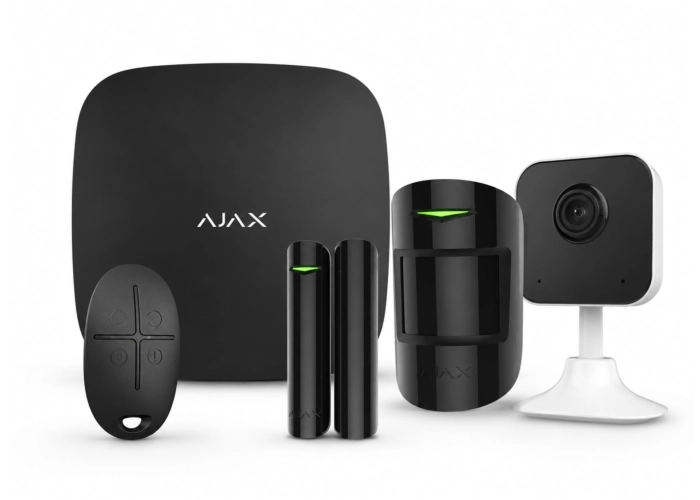

Package contents:
1 x Hub 1 - Black SMART (brand Ajax systems)
2 x Motionprotect - Black SMART (brand Ajax systems)
2 x Doorprotect - Black SMART (brand Ajax systems)
1 x Spacecontrol - Black SMART (brand Ajax systems)
1 x Homesiren - Black SMART (brand Ajax systems)
1 x Keypad - Black SMART (brand Ajax systems)
Installation material
Manual
