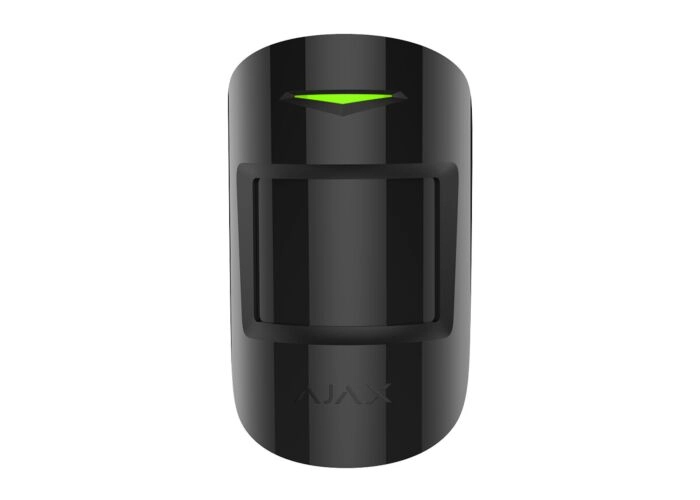

Ajax MotionProtect Black SMART

The black Ajax MotionProtect is a wireless PIR motion detector for use with the Ajax Hub and complete Ajax SMART alarm systems. This motion sensor detects human movement up to a distance of 12 meters and is designed for reliable indoor security.

Thanks to smart detection technology and adjustable sensitivity, MotionProtect can accurately detect motion while largely ignoring pets. The sensor is fully configurable and easily integrated into the alarm system via the Ajax app.

The Ajax MotionProtect is often used as a motion detector within a wireless alarm system for homes and offices. Combined with an Ajax Hub, this sensor provides a reliable solution for detecting unwanted movement in secured areas.

Application and use

The Ajax MotionProtect is suitable for securing living rooms, hallways, offices, and other indoor spaces. The sensor is typically installed at a height of approximately 2.4 meters for optimal detection.

Typical applications include living rooms, hallways, stairwells, offices, and storage spaces. The sensor is often placed along walkways where an intruder must move to access other rooms. Its black finish also allows the sensor to discreetly blend in with dark walls, window frames, or interiors.

Detection and pet friendliness

The motion detector uses passive infrared (PIR) technology and is configured for pet safety. It ignores pet movements up to a certain size, while reliably detecting human movement.

• Detection range up to 12 meters
• Adjustable sensitivity
• Pets up to approximately 20 kg and 50 cm in height are ignored
• Detection angle: 88.5° horizontal and 80° vertical

Wireless communication and security

The Ajax MotionProtect communicates wirelessly with the Ajax Hub using the encrypted Jeweller protocol. This protocol provides a stable, long-range connection and continuous monitoring for interference.

• Wireless range up to 1700 meters in open space
• 868.0 – 868.6 MHz frequency
• AES encrypted communication
• Protection against sabotage and jamming

Nutrition and lifespan

The MotionProtect uses a CR123A battery, which is included as standard. Thanks to its energy-efficient design, the battery lasts a very long time under normal use.

• Powered by CR123A battery
• Battery life up to approximately 7 years
• Automatic battery notification via the Ajax app

Position within the Ajax range

The Ajax MotionProtect is the standard motion detector within the Ajax alarm system and is suitable for most indoor environments. For situations with additional requirements, such as glass detection or outdoor applications, specialized motion detectors are also available within the Ajax product range.

Technical specifications

• Suitable for indoor use
• Recommended mounting height: approximately 2.4 meters
• Response time: approximately 0.15 seconds
• Temperature range: -10 °C to +40 °C
• Humidity: up to 75%
• Dimensions: 110 × 65 × 50 mm
• Weight: 86 grams
• Certification: Grade 2

Package contents

• Ajax MotionProtect – black
• Mounting material

Buy Ajax MotionProtect at Sitcon

Sitcon has specialized in professional security solutions since 2007. All Ajax products are internally tested for quality, reliability, and compatibility. Sitcon also offers support from its stores in Nieuwegein and Maaseik and is a member of Thuiswinkel Waarborg.
