This Ajax 12 volt inverter for the SMART Hub 1, Hub Plus and Range extenders makes it possible to connect them in a location where there is no power available. With a 12V power supply, you can connect hubs and signal boosters to low voltage or use a portable battery.
Applications Ajax 12 volt inverter:
- In a warehouse or shed: Applications Ajax 12 volt inverter:
Use the SMART alarm system in buildings without mains voltage or with an unstable power supply.
- In a caravan or trailer: Ajax secures your home, even when it's on wheels.
- On a boat:
Insert a SIM card, connect the hub to the on-board network or battery
Installation:

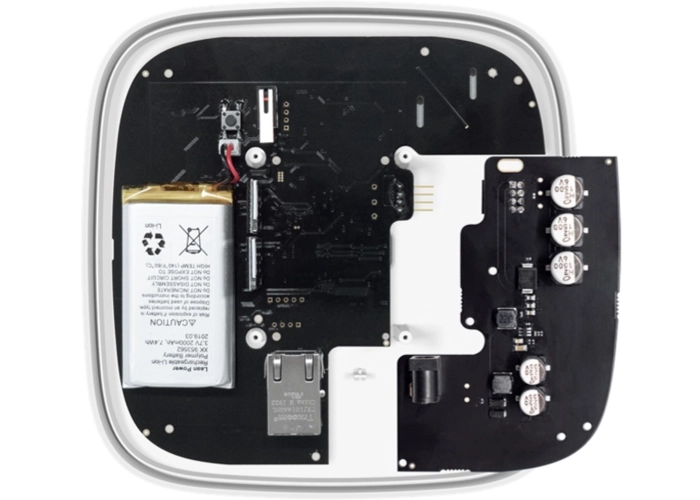

The 12V power supply unit (PSU) is installed in the device's housing and replaces the pre-installed 110/230V power supply. See also the product video on this page.
The 12V power supply unit (PSU) is installed in the device's housing and replaces the pre-installed 110/230V power supply. See also the product video on this page.
Ajax 12v power supply features:
Compatibility
SMART Hub, Hub Plus, ReX
Input voltage
8-20 V DC
Output voltage
4.65 V ± 3%
Switch-on voltage
8 V ± 2.5%
Disable panning
6.9-7.5 V (depending on load)
Input current
<1 А
Output current
1.5 А
Connection
Socket: 6.5 × 2 mm
Plug: 5.5 × 2.1 mm (power plug)
Plug: 5.5 × 2.1 mm (power plug)
Dimensions
138 × 64 × 13 mm
Weight
30 g
Package contents:
12V PSU for Ajax SMART Hub/Hub Plus/ReX
Adapter (TA)
Quick guide
Adapter (TA)
Quick guide
