Care kit with SOS button and SMART camera

With this Care Kit, the elderly and those in need of care can request help via an SOS button. You can switch on the camera remotely via the IP camera and you can communicate directly via the two-way speech function. This care kit in black is a high-quality wireless alarm system made in the EU. This alarm system comes with a base station, and an SOS panic button and IP camera with two-way audio. This makes this set very suitable for (elderly) care applications. The panic alarm can be expanded with all SMART accessories such as motion detectors and door contacts.

Install yourself or have it installed?:
Although this alarm system is easy to install yourself, you can of course also have the system installed at your location. We are happy to put you in touch with a specialized company, so that their experienced installers ensure proper operation, adjust the settings to your wishes and provide you with a detailed product explanation.

Base Station Hub:
The Hub is the central point of this alarm system. You connect this box to the mains power and to your router with a network cable. It is also possible to optionally place a SIM card in the Hub so that an alarm can still be given if the internet signal is lost. You then set the Hub to the settings you want via the Smartphone App and connect the SOS button. The SOS button can be set to sound an alarm immediately, or when double-tapping or pressing for a long time. This way, false alarms can be prevented. When the panic button is pressed, you will be immediately notified by a push message in the App.

How to use the SOS panic button:
When the panic button is pressed, the alarm will be activated immediately. The panic button can be set as desired to prevent false alarms from being accidentally pressed. For example, you can set the SOS button so that it only sounds an alarm when you double tap it or hold it down for longer.

How does the IP camera work:
By integrating the camera into the alarm system app, you do not need different applications to operate your alarm system and security camera. When you receive an alarm message, you can immediately see what is happening. The IP camera also has an SD card slot and optional Cloud storage so that the images are recorded during movement and can be viewed and/or saved later. Furthermore, this camera has two-way audio that makes it possible to speak to the person at the camera.

Expanding the SMART alarm system:
The SOS alarm system has many expansion options. Up to 100 detectors and up to 10 surveillance cameras can be connected to the Hub base station. See the recommended extensions below under accessories or contact us for a suitable proposal.

Properties SOS panic button - Button:
- Small size button on battery
- Can be used as a panic button
- CR2032 battery
- Up to 5 years of battery operation
- Up to 1300 meters transmission distance in open field to Hub
- Can be attached to a lanyard or with the supplied 3M tape.
- AES encryption wireless connection
- Can be used from -25 to 50 degrees Celsius
use humidity
- 47 x 35 x 13 mm
- 16 grams
- Grade 2 certification

Base station features - Hub:
- Hub with ethernet and SIM card connection
- Android and iOS smartphone App
- No subscription fees
- Up to 100 sensors can be connected
- Up to 50 users can be configured
- Up to 50 rooms can be configured
- Up to 9 groups can be set/
- Alarm signal within 0.15 seconds
- SMS message*, Call* or Push notification in case of alarm. *When inserting SIM card
-ARM processor
- 110 - 240 volt power supply via adapter
- Hub Backup battery up to 15 hours
- AES encryption between host and sensors
- Up to 200 meters range between sensors in open space
- 868.0 - 868.6 Mhz frequency sensors
- Protection against tampering and jamming/disrupting signal
- Up to 10 cameras can be connected

Features of an indoor IP camera:
- Wifi IP camera with wide viewing angle
- 1/4" Progressive Scan CMOS
- 2 Megapixels (1920x1080)
- Lens 2.8mm / Viewing angle 124 °
- 0 Lux/IR LED range 12 meters
- H.264 compression
- Dual WiFi 2.4 and 5 GHz
- Two-way audio
- Magnet attachment
- Compatible with SMART alarm system app
- SD card support up to 128 GB
- Optional Cloud storage for a fee

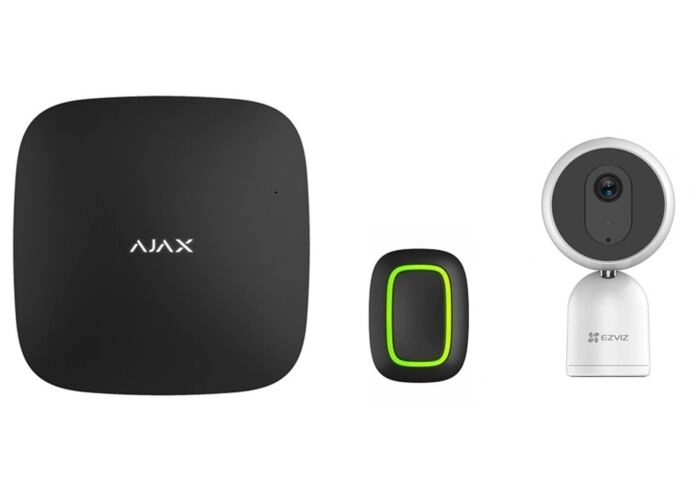

Package contents:
1 x Hub - Black SMART (brand Ajax systems)
1 x Panic button - Black SMART (brand Ajax systems)
1 x IP indoor camera (Ezviz brand)
Manual
