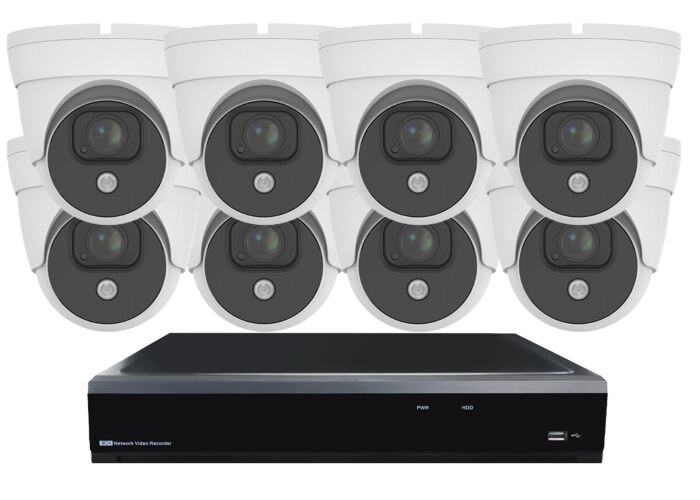

Wireless dome camera system SMART 8

This wireless Dome camera set SMART with 8 cameras is a complete camera system from the line of the latest generation of CCTV surveillance cameras. The Dome camera has a motorized varifocal lens, SMT IR LEDs, Power over Ethernet (POE) and Full-color night vision technology. The recorder has a built-in power over ethernet (POE) switch, smartphone APP with P2P cloud technology, dropbox storage option and much more. The ease with which this recorder can be used makes it suitable for anyone to install themselves.

Motorized lens:
The motorized lens of the Dome camera makes it possible to zoom via the recorder, but also from the APP. Thanks to the auto focus, the image is immediately focused, so you have a zoom range between 31 and 103 degrees.

How does the dome camera system wireless SMART work?:
The recorder is the central point in the setup of this wireless system. A network cable runs from this recorder to your router and optionally an HDMI cable to your TV or monitor. A hard disk is built into the recorder where the images are stored continuously or during movement. The cameras are connected by plugging the supplied Powerline adapters into a socket, after which the images from the cameras are sent via the existing power network to the recorder, where a receiving Powerline adapter must be placed in the socket. With these powerline adapters it does not matter whether the powerline adapters are connected in the same group or phase as long as they are behind the same meter cupboard.

New generation of night vision:
By using the new generation of SMT IR LEDs and LEDs, a superior night vision in color or black / white is made possible up to 30 meters.

Motion Detection and Recording:
This recorder comes with a built-in hard disk and is set by default to record when there is movement. On average, it takes up to a few weeks for the hard disk to become full. When this happens, the oldest images will automatically be overwritten.

- Pre-record function:
Even the five seconds before the movement are recorded, so you always have the full events recorded.

- Motion Detection Distance:
The motion detection works by analyzing the image and therefore works as far as the camera has a view.

- Exclude part from motion detection:
You can select yourself which part of the image should or should not be detected by the motion detection.

- Exclude part from recording:
In addition to excluding part of the motion detection, it is also possible to select a certain area in the image that will not be recorded. You then place a privacy mask over the part you wish to block, which then appears as a black surface. This way you can aim the camera as you wish without recording privacy-sensitive parts or, for example, your neighbors.

- Adjust motion detection sensitivity:
You can specify how much motion must occur before it is detected and recording begins. For example, you can lower the sensitivity when there are too many motion reports.

- Set times for motion detection:
The recording schedule can be set in such a way that it can be determined per day and time whether recording should be made in case of movement.

- Optional cloud storage:
A smart option of this recorder is that a snapshot of the movement can also be uploaded to your dropbox account. This way, the images are still safe if your recorder is taken away or damaged. A dropbox account can be created for free via dropbox.com and works like a kind of personal hard drive on the internet.

View images via the APP or PC:
The free app that comes with the recorder is suitable for Windows, MAC OS, iPhone and Android. You connect the recorder to your router with the supplied network cable and the rest goes without saying without having to adjust any settings. From that moment on you can view the live images, but also the recorded images from the same location, but also at the office or even when you are abroad. In the event of movement, you will also receive a notification via the APP on your smartphone via a push notification.

To view images on a TV (monitor):
The recorder can be connected directly to a TV or other monitor with an HDMI input using the supplied HDMI cable. The recorder also has a VGA output for use with monitors that do not yet support HDMI.

Install yourself or have it installed?:
Although this wireless camera system is easy to install yourself, you can of course also have the system installed at your location. We are happy to put you in touch with a specialized company, so that their experienced installers ensure proper operation, adjust the settings to your wishes and provide you with an extensive product explanation.

Package contents:
1 x Recorder with 8 channels - SMART
8 x Dome cameras - SMART
8 x 20 meter UTP cable (other lengths on request)
Power line adaptors
Screw and plug cameras
All necessary accessories
Instruction manual
