Ajax photo alarm PIR kit White SMART

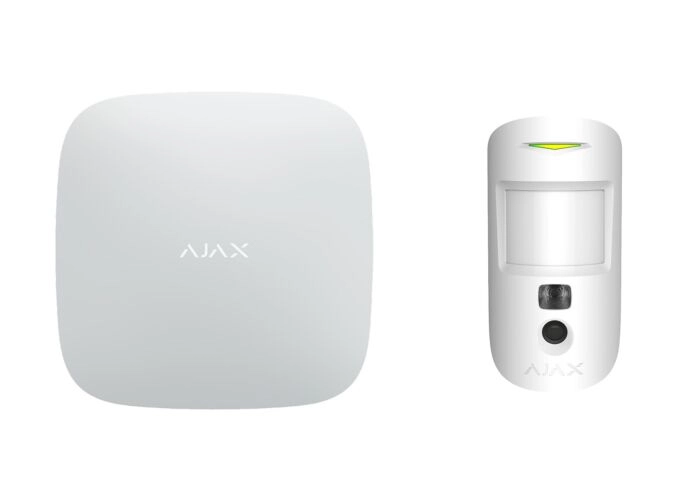

The Ajax Systems Photo Alarm Kit SMART is a complete set that includes a PIR motion detector with a built-in indoor photo camera and a wireless base station (Hub). The Hub connects to the internet via an Ethernet cable or SIM card. As soon as the photo PIR camera detects motion, you'll receive an SMS, phone call, or push notification on your smartphone. The battery-powered motion detector sends a wireless signal to the Hub when motion is detected. Place the photo PIR detector wherever you want to protect it, such as a hallway, living room, office, or warehouse. If desired, you can expand the system with an indoor or outdoor siren for an audible alarm.

How does the Ajax Photo alarm kit SMART work?

The Ajax Hub is the central component of this photo alarm. You connect the Hub to your router with an Ethernet cable, or insert a SIM card to work via the mobile network. Then, install the Ajax app on your smartphone (Android or iOS). In the app, you add the photo PIR detector, set the sensitivity, and choose how you want to receive notifications. When motion is detected, the detector automatically takes one or more photos and sends them to your phone via the Hub, so you can immediately see what's happening.

No monthly fees

Unlike many other alarm systems, this Ajax Photo Alarm Kit SMART operates without mandatory monthly subscription fees. The Ajax app is free to use, and firmware updates are included in the purchase price. Any costs for your own internet connection, SIM card, or an optional external monitoring station are your own responsibility, but for regular use of this photo alarm kit, there's no fixed monthly fee.

Applications of the photo PIR alarm camera

Because the Hub can work with both Ethernet and a SIM card, this photo alarm kit is ideal for locations without a fixed internet or phone connection. Think of a boat, garage, camper, caravan, vacation home, storage unit, or remote shed. You'll receive not only a notification when motion is detected but also immediate photo verification, allowing you to remotely assess whether a burglary or a harmless situation has occurred.

Pet-friendly design

The photo PIR detector is designed to be pet-friendly. Thanks to smart algorithms and optical filtering, the detector typically ignores animals up to approximately 20 kg and about 50 cm tall. This significantly reduces the number of false alarms caused by pets. Moving curtains and slight changes in shadow or light are also filtered out as much as possible.

Expand to a complete alarm system

The Ajax Photo Alarm Kit SMART can serve as the foundation for a complete wireless alarm system. Up to approximately 100 wireless detectors can be connected to the Ajax Hub, such as additional motion detectors (with or without cameras), magnetic contacts on windows and doors, smoke detectors, water leak detectors, sirens, and panic buttons. This allows you to gradually expand from a single photo PIR detector to a complete alarm system.

Wireless yet safe and secured against sabotage

Communication between the Hub and the detectors runs via the encrypted Jeweller protocol. The system periodically checks (every 12–300 seconds, adjustable) whether all detectors are still responding correctly. In the event of malfunctions, sabotage, or jamming attempts, a notification is immediately sent to the app. This combines the convenience of wireless with the reliability you expect from a modern alarm system.

Ajax photo PIR detector features

- Takes photos in 640 x 480 pixels when an alarm is triggered
- Adjustable from 1 to 5 photos per event
- Motion detection up to approximately 12 meters
- Pet-friendly up to approx. 20 kg and ± 50 cm height
- Three sensitivity levels adjustable
- Advanced filtering to minimize false positives
- Two-way communication with the Ajax Hub for testing and configuration
- Battery life up to approximately 3 years (depending on usage)
- Installation via SmartBracket mounting without having to open the housing
- Remotely test connection quality and detection area
- Connects to Hub 2 with one push of a button
- Encrypted connection, jamming detection and frequency hopping

Ajax base station (Hub) features

- Ethernet connection (LAN)
- 2G GSM SIM card slot (4G variant available on request)
- Up to approximately 100 sensors can be connected
- Can be configured for up to approximately 50 users and 50 rooms
- Up to 9 groups can be configured
- Alarm signal within approximately 0.15 seconds
- Push notification, SMS or call in case of alarm (when using a SIM card)
- ARM processor
- Power supply: 110–240 volts via adapter
- Backup battery up to approximately 16 hours
- AES encryption between Hub and sensors
- Wireless range up to approximately 200 meters (open field)
- Frequency: 868.0–868.6 MHz (Jeweller protocol)
- Protected against sabotage and jamming
- Up to 25 cameras can be connected
- Dimensions: approx. 163 x 163 x 36 mm
- Weight: approx. 350 grams
- Made in the EU

Grade 2 certification and insurability

This Ajax alarm system uses a Grade 2-certified hub according to European burglary protection standards. This means the system is technically suitable for residential and light commercial applications. However, whether and under what conditions an alarm system is accepted by your insurer varies depending on the insurance policy and policy conditions. We therefore recommend consulting with your insurer in advance.

Package contents

1 x Ajax Hub 2 2G base station (4G version available on request)
1 x Ajax SMART photo PIR motion detector
Mounting material
Manual

Buy Ajax Photo alarm kit SMART at Sitcon

Sitcon has specialized in smart security solutions since 2007 and tests all systems internally for reliability and ease of use. You are welcome to visit our stores in Utrecht (Netherlands) and Maaseik (Belgium) for personalized advice and demonstrations. Sitcon is affiliated with Thuiswinkel Waarborg, so you can be assured of a safe purchase, a clear warranty, and excellent service.

Frequently asked questions about the Ajax Photo alarm kit SMART
