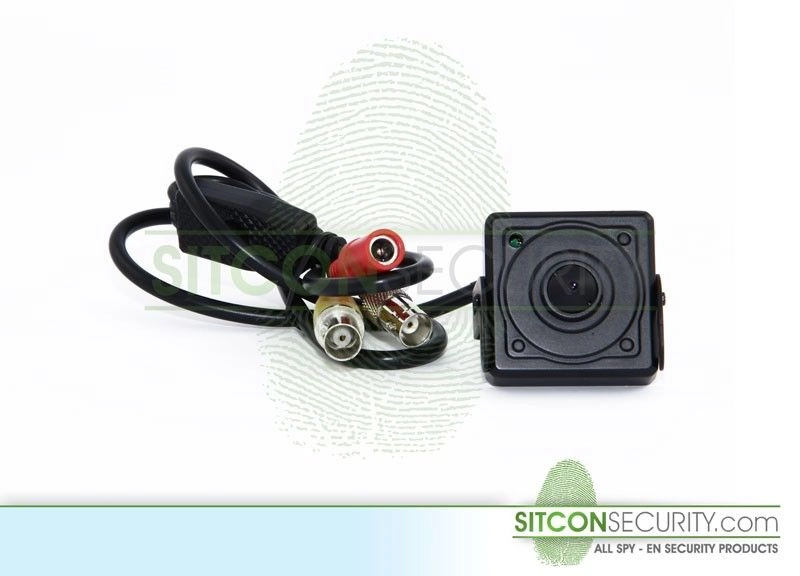

Where for a long time Full HD resolutions were only available with HD IP and HD-SDI security cameras, there is now also a mini camera model with a spy pinhole lens which can transmit images in Full HD, 1920 x 18080 (1080P). When placing a hidden camera, limited space is often available and the size of the mini spy camera is therefore very important. This Full HD spy camera has very compact dimensions of 42 x 42 x 34 mm, but the most important for placement is the pinhole lens that can be concealed in an object or ceiling, for example.
Applications Full HD mini spy camera:
The Full HD mini spy camera is very suitable for hidden applications where the image quality must be of the highest quality, because it is a very small camera. The Ful HD mini spy camera can be concealed in very many places with the pinhole lens so that it does not stand out. This could include, for example, installing in a system ceiling, emergency exit lighting or placing it in a file, for example.
Full HD images mini spy camera:
Now that the latest HD-SDI technology is also available to consumers, it is possible for everyone to record in Full HD with a CCTV security camera system. So never again with grainy images and even such a sharp image that applications like license plate registration are possible. This mini spy camera with pinhole lens can display images in Full HD, 1080P with 30 frames per second and images in 720P with 60 frames per second.
1100 TV lines Full HD mini spy camera:
Where conventional CCTV surveillance cameras and spy cameras could have a maximum number of TV lines of 650/700, with the HD-SDI mini camera this is a greatly improved 1100 or more TV lines. This is made possible by a Panasonic 2 Megapixel lens with a resolution of 2010 x 1108 pixels.
Clear image during the day and in the evening:
The Full HD mini spy camera has a lens sensor which automatically adjusts to the amount of light that is present. For example, this HD mini spy camera displays the images in color during the day and has a minimum light sensitivity of 0.2 Lux, while switching to a black and white mode with little light, where the light sensitivity is only 0.001 Lux.
Recording images Full HD mini spy camera:
You need an HD-SDI recorder to record the images from the Full HD mini spy camera. Unfortunately it is not possible to connect the HD-SDI mini spy camera to another digital video recorder / DVR. It is possible with an HD-SDI to HDMI converter to display the images of the Full HD spy camera directly on a TV or monitor. This Full HD mini spy camera, for example, can be used for presentations or stands and thus directly display a specific image. The HD-SDI to HDMI converter can be ordered under the TAB accessories.
Other features Full HD mini spy camera:
- 1/3 Progressive Panasonic CMOS lens
- 2010 (H) x 1108 (V) total pixels
- 1920 (H) x 1080 (V) active pixels
- 2 Mega Pixel, 3.7 mm pinhole lens
- Color: 0.2 Lux, 0.01 Lux BW
- Resolution: 1080P (30/25 fps) / 720P (60/50 fps) / 1100 TV lines
- S / N ratio: more than 50 dB
- Shutter speed: Auto 1/25 -0 1/3000 Sec
- OSD menu
- 2 and 3D DNR
- WDR
- Backlight compensation
- Digital zoom 0 - 96 x
- Mirror / Flip
- Privacy masking 32 zones
- HD-SDI video output (SMPTE 292M) / CVBS 1.0Vp-p 75 ohm
- DC 12V, 500 mAh
- From -10 to 50 working temperature
- 42 x 42 x 34 mm
- 220 grams
Buy Full HD mini spy camera:
The Full HD mini spy camera can be purchased separately or in combination with an HF recorder at our online store, but it is also possible to view the camera and image quality in our showroom. View the product page of the: Full HD mini spy camera now
View all our Mini Spy Cameras here
