Ajax outdoor alarm PIR iConnect SMART
Ajax outdoor alarm PIR iConnect SMART
- Customers rate us 8.6 based on 806 reviews
- Experienced customer service and 2 year warranty
- Specialist since 2007. Member of Thuiswinkel Waarborg
Specifications: Ajax outdoor alarm PIR iConnect SMART
| Alarm type | Driveway alert |
|---|---|
| Waterproof | Yes |
| SKU | 6013 |
Pros and cons :
- No subscription fees and free app.
- Grade 2 certified components.
- Wirelessly via a unique secure two-way connection.
- No remote control or keypad is supplied as standard.

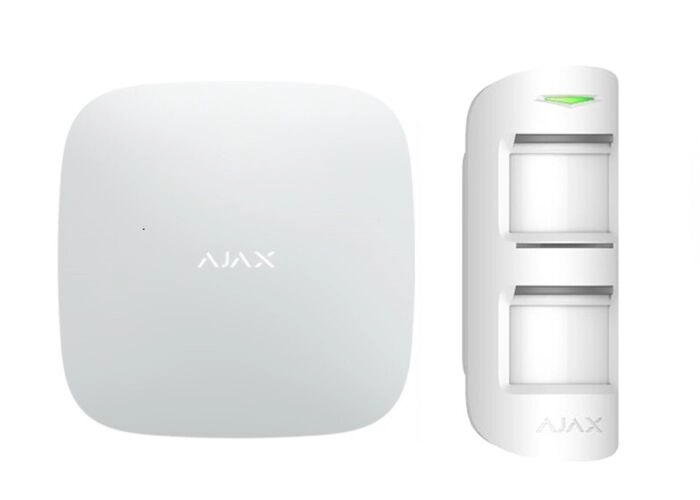

This Ajax Systems PIR iConnect SMART outdoor alarm is a complete outdoor detector set with an IP66 outdoor motion detector and a wireless base station (hub) that connects to the internet via an Ethernet cable or SIM card. As soon as the outdoor alarm detects motion, you'll receive a push notification on your smartphone. This makes the system ideal as a driveway alarm, perimeter security, or early intrusion detection system for your home or business.
How does the Ajax outdoor alarm iConnect SMART work?
The Ajax Hub serves as the base station for this outdoor alarm. Connect the Hub to your router with the included Ethernet cable, or insert a SIM card to work via mobile internet. Then install the Ajax app on your smartphone. In the app, you add the outdoor detector, set the sensitivity, and choose how and when you want to receive notifications.
The outdoor detector is battery-powered and communicates wirelessly with the Hub. You place the PIR motion detector outdoors in the area you want to protect, such as a driveway, garden path, gate, walkway, or back door. When motion is detected, the sensor immediately sends a signal to the Hub, which in turn sends a notification to your smartphone. If you also want an audible signal inside your home, the system can be expanded with an indoor siren with a chime function.
No monthly fees
Unlike many other alarm systems, Ajax systems don't have mandatory monthly subscription fees. The Ajax app is free to use, and firmware updates are included in the purchase price. Any costs for your own internet connection, SIM card, or an optional external monitoring station are your own responsibility, but for regular use of this outdoor alarm system, there's no fixed monthly fee.
Pet-friendly outdoor detector

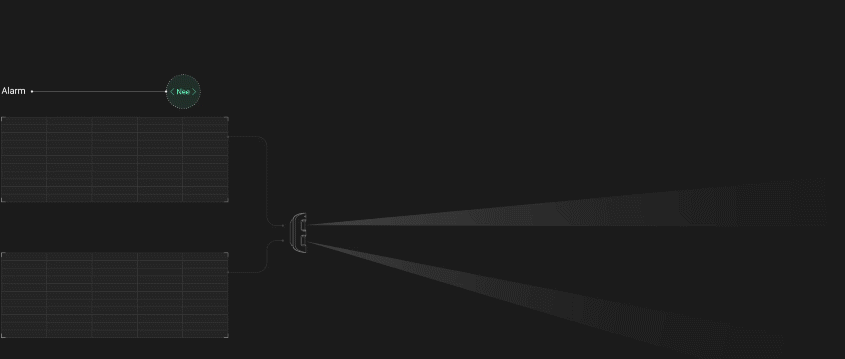

The outdoor motion detector is designed to be pet-friendly. Thanks to smart algorithms and optical filtering, the detector typically ignores animals up to approximately 25 kg and a height of approximately 80 cm. This significantly reduces the number of false alarms from animals like cats or smaller dogs. Moving branches and slight changes in shade are also filtered out as much as possible.
Ajax outdoor alarm easily expandable to a complete alarm system
This outdoor alarm can serve as the foundation for a complete wireless alarm system. Up to approximately 100 detectors can be connected to the Ajax Hub, such as additional indoor motion detectors, magnetic contacts on windows and doors, smoke detectors, sirens, and panic buttons. In addition, up to approximately 10 surveillance cameras can be connected for video footage. This allows you to gradually expand from a simple outdoor detector to a complete indoor and outdoor alarm system.
Wireless but secure
While some wireless systems risk disrupting (jamming) the radio signal, the Ajax system features extensive sabotage protection. Communication between the Hub and detectors is two-way and continuously monitored. Every 12 to 300 seconds (adjustable), the Hub checks whether all detectors are still reachable. In the event of malfunctions or jamming attempts, you'll receive an immediate notification in the app.
Ajax outdoor PIR sensor features
- Sensor type: dual PIR outdoor detector
- Detection distance: approx. 3 – 15 meters
- Detection angle: approx. 90°
- Pet-friendly: up to approx. 25 kg / 80 cm
- Protection class: IP66 (suitable for outdoor use)
- Wireless range: up to approx. 200 meters (open field)
- Communication protocol: Jeweler (868.0–868.6 MHz)
- Power: 2x CR123A battery
- Battery life: up to approx. 5 years (depending on use)
- Optional external power supply: 5–28 VDC, 200 mA
- Operating temperature: approx. -25 °C to +60 °C
- Humidity: up to approx. 100% (non-condensing)
- Dimensions: approx. 184 x 70 x 65 mm
- Weight: approx. 318 grams
Ajax base station (Hub) features
- Ethernet (LAN) connection for a fixed internet connection
- Micro SIM card support for mobile internet and backup
- Up to approximately 100 sensors can be registered
- Can be configured for up to approximately 50 users and 50 rooms
- Up to 9 groups can be configured
- Alarm signal within approximately 0.15 seconds
- Push notification, SMS or call in case of alarm (when using a SIM card)
- ARM processor
- Power supply: 110–240 volts via adapter
- Backup battery for up to approx. 15 hours in case of power failure
- AES encryption between Hub and sensors
- Wireless range up to approx. 200 meters (open field)
- Frequency: 868.0–868.6 MHz (Jeweller protocol)
- Protection against sabotage and jamming
- Possibility to connect up to approx. 10 cameras
- Dimensions: approx. 163 x 163 x 36 mm
- Weight: approx. 350 grams
Grade 2 certification and insurability
The Ajax base station is Grade 2 certified according to European burglary protection standards. This means the system meets the technical requirements typically set for residential and light commercial applications. Whether and under what conditions an alarm system or outdoor detector is accepted by your insurer varies by insurance policy and policy conditions. We therefore recommend checking this with your insurer beforehand.
Package contents
1 x Ajax Hub base station
1 x Ajax SMART outdoor motion detector
Mounting material
Manual
Buy Ajax outdoor alarm PIR iConnect SMART at Sitcon
Sitcon has specialized in security solutions since 2007, including wireless alarm systems and outdoor detectors. All systems are internally tested for reliability and ease of use. You are welcome to visit our stores in Utrecht (Netherlands) and Maaseik (Belgium) for advice and demonstrations. Sitcon is affiliated with Thuiswinkel Waarborg, so you can be assured of a safe purchase, excellent service, and a clear warranty.
Frequently asked questions about the Ajax outdoor alarm iConnect SMART
Is this Ajax outdoor alarm suitable as a driveway detector or site security?
Yes, this system is ideal for use as a driveway detector or perimeter security system. You place the outdoor detector along your driveway, garden path, gate, or backyard, and receive an immediate notification on your smartphone as soon as motion is detected.
Do I need a subscription to receive notifications?
No, you don't need a mandatory subscription. The Ajax app is free, and push notifications are included. Only if you use mobile internet via a SIM card or an external monitoring center may there be additional charges.
Does the system also work if the fixed internet connection fails?
Yes, when you insert a suitable SIM card into the Hub, the system can switch to mobile internet in the event of a landline outage. This way, you'll continue to receive notifications, even during network outages.
Is the outdoor detector really pet-friendly?
The outdoor detector is designed to largely ignore animals weighing up to approximately 25 kg and up to a height of approximately 80 cm. In practice, this means that cats and smaller dogs usually don't cause false alarms, especially when the detector is properly positioned and configured.
Can I expand this outdoor alarm later to a full alarm system?
Yes, the Ajax system is modular. You can easily add additional indoor and outdoor detectors, magnetic contacts, sirens, smoke detectors, and other sensors later, up to approximately 100 devices on a single hub. This way, the system grows with your security needs.
