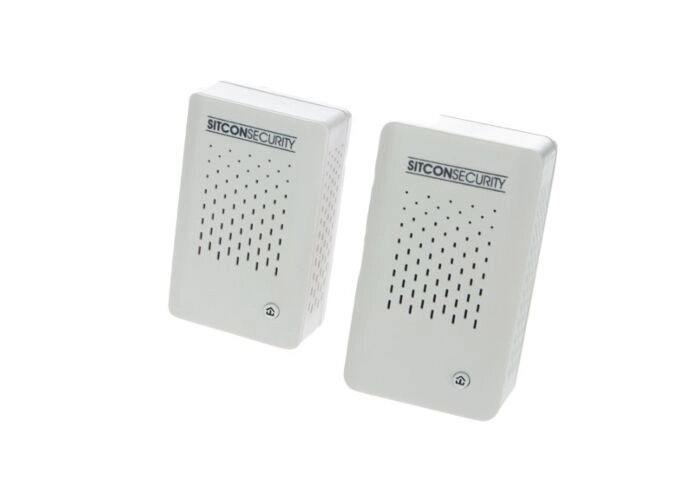

Powerline Adapter Set with PoE

The Sitcon Powerline Adapter Set is a reliable and fast solution for anyone who wants to easily expand their network without running complicated cables. This set, consisting of a transmitter (SCS-P1200P2) and a receiver (SCS-P1200P1), uses the existing electrical wiring in your home or office to create a stable data connection. This means that any location with a power outlet can be transformed into a network connection. Whether it's for IP cameras, an NVR, a smart TV, a computer, or other network devices, this set ensures a stable connection where Wi-Fi often falls short.

What makes the Powerline Adapter Set special?

The biggest advantage of this set is that both data and power are transmitted over a single line thanks to Power over Ethernet (PoE) support. Devices like IP cameras can be connected with just one cable, combining power and data transfer. This greatly simplifies installation and makes the system suitable for a wide range of applications, from camera surveillance to expanding a home or business network.

Key Features

When choosing a Powerline solution, reliability, speed, and flexibility play a major role. This set is equipped with modern technology and offers a solution for both residential and business applications.

- Support for Power over Ethernet (PoE) up to 55V/30W or 48V/15.4W

- Maximum speed of 1200 Mbps, suitable for video, streaming and large data flows

- Plug-and-play installation, no complex settings required

- Compatible with IP cameras, NVRs, computers, TVs and other network devices

- Reliable connection via the existing power network, even in larger buildings

Technical specifications

The compact adapters are powerful and comply with international network communication standards. This makes the set suitable for a wide range of applications and compatible with existing equipment.

- Model: SCS-P1200P2 (transmitter) and SCS-P1200P1 (receiver)

- Throughput speed: up to 1200 Mbps

- PoE support: 55V 30W or 48V 15.4W depending on the connected device

- Protocol standards: HomePlug AV2, IEEE 802.3, IEEE 802.3u (10/100 Ethernet), IEEE 802.3af/at

- Power supply: 100–240V~, 50/60Hz

- Dimensions: approximately 110 × 65 × 40 mm per adapter

Package contents

- 1x Powerline Adapter transmitter (SCS-P1200P2)

- 1x Powerline Adapter Receiver (SCS-P1200P1)

- 2x UTP network cable

- 1x Installation manual

Use with IP cameras

This set is ideal for connecting IP cameras. The transmitter can be placed directly next to the camera and connected via a UTP cable. The signal is then sent via the powerline to the receiver, which is located next to the NVR or router. This results in a stable connection without the need for a long network cable. This is especially useful for installations in garages, warehouses, or outdoor areas where cabling would be difficult or expensive.

Wider use than just cameras

The Powerline Adapter Set isn't limited to camera surveillance. It's ideal for establishing a stable internet connection in places where Wi-Fi isn't working or is working poorly. Think of a shed, garage, attic, basement, or outbuilding that's out of reach of your router. By simply placing a transmitter and receiver, a wired internet connection is created via the mains. This is also useful for smart TVs, desktops, or laptops that require a wired connection for optimal performance. In the office, the set can be used to provide workstations with a reliable network connection without having to run new cables.

Installation and ease of use

Installation is simple and takes just a few minutes. Connect the transmitter to the device you want to connect and the receiver to the router or NVR. Plug both adapters into a wall socket and connect them with a UTP cable. Communication will automatically be routed via the powerline. For best performance, we recommend plugging the adapters directly into a wall socket and avoiding power strips. Thanks to its plug-and-play operation, no technical knowledge is required to use the set.

Practical applications

Whether it's a vacation home where you need temporary internet access, a company building where Wi-Fi coverage is limited, or a home network where streaming and gaming require a stable connection: this Powerline Adapter Set offers a flexible and reliable solution. The ability to add multiple transmitters makes the network easily expandable. This makes the set scalable and suitable for both small and large installations.

Advantages

The biggest advantages are the ease of installation, the high speed, and the versatility. Because the set uses the existing electrical wiring, no major work is required to run cables. Support for PoE also offers added value for devices like IP cameras that require both power and data.

Possible limitations

As with all Powerline technology, the quality of the connection can depend on the building's electrical system. Factors such as the age of the wiring and the use of multiple circuits can affect performance. For optimal results, direct installation into the wall socket is recommended, and the use of multiple circuits can sometimes be a limiting factor.

Buy Powerline Adapter Set at Sitcon

Sitcon has been active in security and network solutions since 2007. All products are rigorously tested to ensure high reliability and quality. The Powerline Adapter Set is ideal for both residential and business users and offers a flexible solution for a variety of situations. Order easily online or visit one of our stores in the Netherlands, Belgium, or Germany for personalized advice and a demonstration.
