Wireless camera system EASY 3

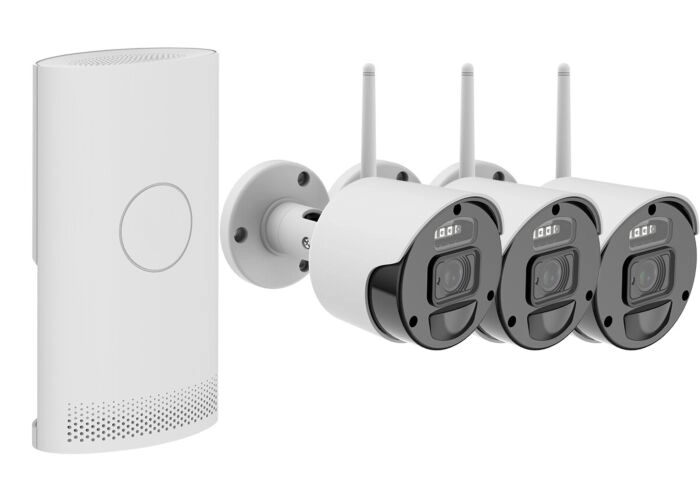

This wireless camera system EASY 5 consists of a recorder with 8 channels and 3 wireless bullet security cameras. The camera is waterproof and can provide a clear image up to about 15 meters, even at night. You then watch the current and recorded images on a connected monitor or via your smartphone.

How to install the wireless camera system?
The NVR is the central unit in this wireless camera system. The NVR wirelessly receives the images from the camera, records them when there is movement and ensures that you can view the images via a (TV) monitor or app. Both the NVR and the camera must be powered with the supplied adapter. The transmission of the video and audio is completely wireless.

Stable wireless signal:
Because this wireless surveillance camera set uses a digital signal, a maximum distance of 50 meters is possible between the camera and the NVR. With the intervention of a maximum of 3 walls, this is still approximately 30 meters. Because the wireless cameras are linked to the NVR, the wireless signal is very stable and interference-free.

Support up to 8 wireless cameras:
The NVR can support up to 8 wireless cameras. Additional cameras can be ordered with this wireless camera set under the accessories section.

Motion detection & Timer recording:
Because the wireless cameras work with a PIR sensor, the camera will only start up and start filming when there is actually movement. The PIR sensor registers movement up to about 12 meters. You can set how long the camera will film for each movement before it goes back into sleep mode. By default this is set to 10 seconds. It is also possible to set a timer so that the camera only responds to movement during the specified time period. The cameras cannot be set to continuous recording. However, you can request a live image via the APP, after which the camera will also start up.

View images via the smartphone APP:
The free app that comes with the HD recorder is suitable for Windows, MAC OS, iPhone and Android. You connect the recorder to your router with the supplied network cable and the rest takes care of itself without you having to adjust any settings. From that moment on, you can view the live images as well as the recorded images from the same location, but also at the office or even when you are abroad. In case of movement, you will also receive a notification via the APP on your smartphone via a push notification.

Wireless camera features:
- 1920 x 1080 pixels resolution (1/2.7 2MP)
- 3.6mm lens
- F.2.2 max aperture
- Viewing angle H: 86.99 V: 47.08 D: 105.87
- Metal IP66 waterproof housing
- Wireless digital connection with pair button
- Up to 40 meters wireless range from NVR
- Built-in microphone
- Built-in speaker
- Infrared LEDs for night vision in black/white up to 12 meters
- White LEDs for color night vision up to 7 meters
- PIR motion detection up to 8 meters
- Operating temperature from -30 to + 50 degrees Celsius
- DC12V1A adapter
- Max 5.52W power consumption

Features of Wireless NVR:
- Up to 8 wireless cameras can be connected
- 1/4/9 or alternating display images
- H.265 video compression
- Audio G7.11a / AAC
- Up to 1920 x 1080 pixels recording
- 1 to 4 cameras：MAX 20fps@2MP/CH, Bitrate : Auto FPS : Auto
- 5 to 6 cameras：MAX 15fps@2MP/CH, Bitrate : Auto FPS : Auto
- 7 to 8 cameras：MAX 12fps@2MP/CH, Bitrate : Auto FPS : Auto
- Motion detection recording
-Privacy zone adjustable
- Overwrite function
- Pre- and post-event recording possible with wireless camera on power
- Playback function via date and time or event
- Up to 7 users can be set up with specific rights
- Smartphone App for iOS and Android
-Software for PC
- Web viewer functionality
- P2P connection via European server TUTK
- Dropbox Cloud storage support
- 2 USB ports
- RJ56 10/100 LAN ethernet port
- Wi-Fi connectivity via 2.4 GHz band (802.11b/g)
- Menu can also be operated via mouse
- Up to 256GB SD card support
- Up to 8 TB 2.5 inch HDD support
- HDMI output (1024 x 768, 1280 x 1024, 1280 x 720, 1440 x 900, 1920 x 1080)
-DC12V2A power supply
- Max 3.9W power consumption
- 0 to 40 degrees working temperature
- 130 x 66 x 228 mm

Package contents:
1 x Wireless receiver with NVR
3xWireless cameras
Adapters
Manual
