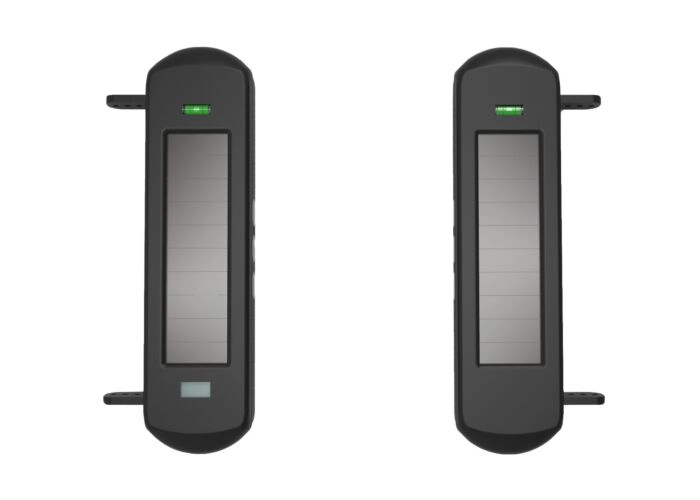

Wireless light barrier 3-beam model PLUS

The wireless 3-beam PLUS light barrier is a professional detector for driveways, passageways, or areas where reliable notification is required when the infrared beam is interrupted. The units operate completely wirelessly thanks to solar power and communicate with all receivers in the PLUS line. Thanks to its three separate IR beams, this detector is more accurate and more resistant to false alarms than the 2-beam model.

Key Features:

The 3-beam light barrier is designed for applications where reliability and stability are essential. Thanks to three infrared beams between the transmitter and receiver, the risk of false positives, for example due to leaves or wind, is minimized. The units are equipped with an LCD screen for easy alignment during installation.

– 3 infrared beams for higher accuracy

– Up to 100 meters distance between transmitter and receiver

– Up to 400 meters wireless range to PLUS receivers

– LCD alignment for precise placement

– Completely wireless and powered by solar panel

– Waterproof design (IP66) suitable for outdoor use

Applications

This model is ideal for situations where accuracy and stability are crucial, such as long driveways, industrial areas, or secure access gates. The triple IR beams provide enhanced detection and minimize the risk of unwanted alerts.

– Driveway indicator for long driveways (up to 100 meters wide)

- Securing passages or fences

- Can be used at industrial sites, warehouses or construction sites

Installation and alignment

Thanks to the built-in LCD screen, the units can be easily and precisely aligned. For stable operation, the three infrared beams must be perfectly aligned, especially at longer distances. The included mounting brackets allow for flexible placement.

Solar powered operation

The built-in batteries are continuously recharged via the integrated solar panel. This makes the light barrier completely wireless. When installed in shady areas or during the winter months, charging with a 12V adapter (not included) may be necessary.

Connection with PLUS receivers

The light barrier is compatible with all Sitcon PLUS receivers, including the tabletop, portable, and relay models. This allows notifications to be transmitted to external systems via audio, visual, or relay signals.

Technical specifications:

– Number of IR rays: 3

– Maximum distance between units: 100 meters

– Wireless range to receiver: 400 meters (open field)

– LCD calibration screen: yes

– Frequency: 433 MHz paired signal

– Power supply: solar panel with internal battery

– Waterproof: IP66

– Temperature range: -30°C to +70°C

– Color: black

Package contents:

– 2 x Wireless IR beams (100 meters)

– 4 x Mounting brackets

– 1 x Manual

– No base station or adapter included

Sitcon: specialist in wireless detection solutions since 2007

Our products are extensively tested for stability and ease of use. This 3-beam light barrier is a favorite among professional users. Visit our stores in Nieuwegein (Netherlands) or Maaseik (Belgium) for personalized advice or a demonstration.
