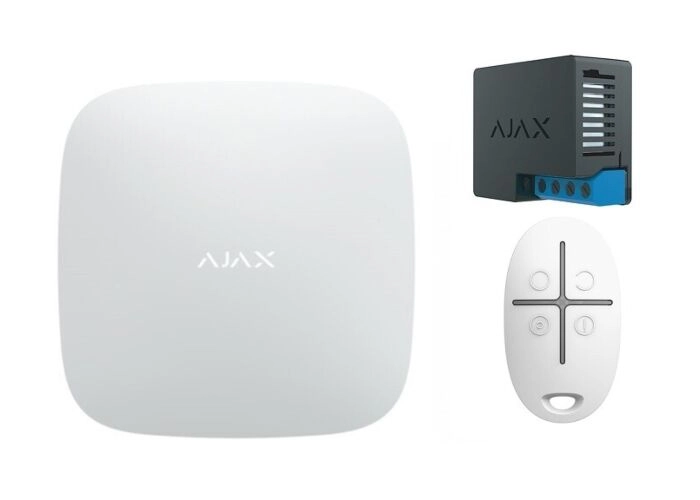

Ajax access gate alarm – Set with relay module

This complete Ajax Hub 1 + Relay SMART set offers a versatile solution for wirelessly switching devices via the Ajax app. Whether controlling lighting, gates, ventilation, pumps, or other electrical installations, this set offers app control, scenario automation, and reliable operation. Thanks to the built-in SIM card function, the system remains fully operational even without a fixed internet connection.

How does the Ajax Hub 1 relay set work?

The Ajax Hub 1 is the central brain of the system. You plug the Hub into the power outlet and connect it to your router via a network cable. Optionally, you can insert a SIM card so the system can automatically switch to mobile data if the internet goes down.

The Ajax Relay communicates wirelessly with the Hub via the secure Jeweller protocol. You can use the free Ajax app to switch connected devices manually or via automated scenarios.

App control and automation via scenarios

With the free Ajax app for Android and iOS, you can remotely switch devices on or off. You can also set up scenarios, such as automatically switching on outdoor lights when an alarm is triggered, opening a gate when the alarm system is disarmed, or turning off heating when the alarm is activated.

All automations run locally via the Hub and are completely free to use, without a subscription.

SIM card option for use without internet

The Ajax Hub 1 supports both Ethernet and a SIM card connection (GSM). This allows the system to continue functioning during internet outages or in locations without a fixed connection. Notifications and scenarios are then sent via mobile data.

This way you can continue to control devices and receive notifications via the app, even in remote locations such as a warehouse, garage, construction site or storage unit without Wi-Fi.

No subscription and easy to use

There are no monthly subscription fees for using the Ajax app, notifications, and automations. Firmware updates are included with the purchase of the hardware. You only pay for your own internet or SIM card costs.

The app is clearly and intuitively designed, allowing even users without a technical background to easily set up circuits and scenarios.

How does the Ajax Relay connection work?

The Ajax Relay operates on 7–24 V DC and is powered by an external adapter, for example, 12 V DC. The relay features a floating (dry) changeover contact that can be used to switch 230 V devices or low-voltage circuits, among other things.

You place the relay between the power supply and the device you want to switch. Using the Ajax app, you can determine whether the relay switches manually or automatically via a scenario.

Expandable with detectors, sirens and additional relays

The Ajax Hub 1 supports up to approximately 100 wireless devices. You can easily expand the set with motion detectors, magnetic contacts, keypads, indoor and outdoor sirens, or additional relay modules for individual switching.

This allows you to build a complete, customized security and automation system step by step.

Applications of the Ajax Relay set

This set is used for remote switching of access gates, roller doors, lighting, pumps, ventilation systems, electric locks and other electrical installations.

Thanks to the SIM card option, this solution is also popular for warehouses, remote buildings and temporary installations without a fixed internet connection.

Ajax Hub 1 Features

– Works via wired internet connection (Ethernet)
– SIM card (GSM) support for backup or stand-alone use
– Free Ajax app for Android and iOS
– No mandatory subscription fees
- Connect up to approximately 100 wireless devices
– Up to approximately 50 users, 50 rooms and 9 groups
– Push notifications in case of alarm, and also SMS/call via SIM card
– Secure wireless communication via Jeweller protocol
– Built-in backup battery (up to approximately 15 hours)
– Protection against sabotage and jamming
– Made in the EU

Ajax Relay Features

– Power supply 7–24V DC (for example 12V adapter)
– Potential-free relay contact (dry contact)
– Suitable for switching 230V loads via external circuit
– Switching via Ajax app or scenarios
– Compact design for mounting in control cabinets or enclosures
– Wireless communication with the Hub via Jeweller protocol

Package contents

1 x Ajax Hub 1 SMART
1 x Ajax Relay switch module
Power adapter(s) as per product specification
Manual
