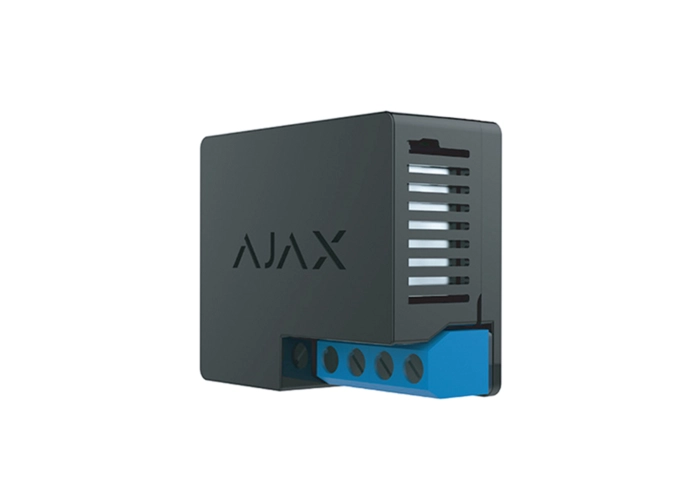

Ajax WallSwitch SMART

The Ajax WallSwitch allows you to control household appliances remotely. It's used to switch irons, garage doors, water heaters, and insulated floors on and off. The app also allows you to monitor the energy/power consumption of each appliance.

Description: The Ajax WallSwitch is a wireless power relay that remotely controls the 110/230 V~ electricity supply. Ideal for controlling lighting, appliances, and smart home automation, it also offers real-time energy consumption monitoring via the Ajax app.

Key Features:

• Wireless power relay
• Support for automation scenarios
• Energy consumption monitoring
• Overload and voltage protection
• Compact size for easy installation

Advantages:

• Ease: Control devices remotely via the Ajax app.
• Energy saving: Monitor and optimize energy consumption.
• Safety: Protection against overload and voltage peaks.
• User friendly: Easy installation via QR code scan.

Technical Specifications:

• Supply voltage: 110–230 V~ ± 10%; 50/60 Hz
• Maximum load: 3 kW at 230 V~, 1.5 kW at 110 V~
• Maximum current: 13 A
• Security: Yes, against overload and voltage peaks
• Communication range: Up to 1000 meters
• Dimensions: 39 × 33 × 18 mm
• Weight: 30 g

Security:

• Anti-sabotage: Fraud protection and jamming detection.
• Encrypted communication: AES algorithm encryption for secure connection.

Compatibility:

• Compatible with: All Ajax hubs and signal boosters

Extra Info:

• Operating temperature: 0°C to +64°C
• Maximum humidity: Up to 75%
• Installation method: Installation in wall plate or electrical panel
• Energy monitoring: Measure voltage, current and consumption
• Power consumption reporting: Real-time monitoring in the Ajax app

Package contents:
Ajax WallSwitch SMART
