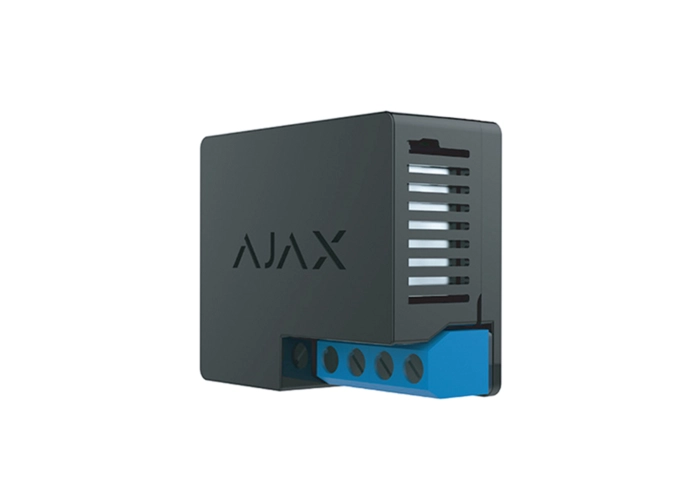

Ajax Relay SMART

This Ajax relay is used to activate electric locks, gates and swing gates, roller shutters and blinds, and to restart modems and routers via the Ajax SMART alarm system.

Description: The Ajax Relay Jeweller is a low-current relay with dry contact for controlling electrical devices via the Ajax app. It offers flexible automation for a variety of applications, such as gates, fences, locks, and smoke cannons.

Key Features:

• Wireless low-current relay
• Dry contact for universal application
• Support for automation scenarios
• Pulse and bistable modes
• Real-time status monitoring

Advantages:

• Ease: Control devices remotely via the Ajax app.
• Flexibility: For use with low-voltage and domestic networks.
• Safety: Protection against overload and voltage peaks.
• User friendly: Easy installation with QR code scan.

Technical Specifications:

• Power supply: 7–24 V DC
• Maximum load: 5 A at 24 V DC, 13 A at 230 V AC
• Pulse width: 0.5–255 seconds
• Operating modes: Pulse, Bistable
• Communication range: Up to 1000 meters
• Dimensions: 39 × 33 × 18 mm
• Weight: 25 g

Security:

• Anti-sabotage: Fraud protection and jamming detection.
• Encrypted communication: AES algorithm encryption for secure connection.

Compatibility:

• Compatible with: All Ajax hubs and signal boosters

Extra Info:

• Operating temperature: -20°C to +64°C
• Maximum humidity: Up to 85%
• Security level: IP20
• Installation method: In switchboard or switch cabinet
• Energy monitoring: Measure voltage, current and consumption
• Power consumption reporting: Real-time monitoring in the Ajax app

Package contents:
AJ-Relay
No adapter
