Ajax Hub BP – complete with 95Ah battery (4G)

The Ajax Hub BP Jeweller is an advanced wireless alarm system, specifically designed for locations without a constant power supply, such as vacant buildings, construction sites, and remote areas. Thanks to its internal 95Ah battery (included), the system operates completely autonomously and doesn't require a fixed power source. The hub offers reliable wireless communication via 4G/LTE and supports photo verification for added security.

Applications and users

This hub is ideal for a wide range of applications where there's no mains power available. Think of boats (such as sloops and yachts), campers and caravans, as well as construction sites, warehouses, remote cabins, recreational areas, or temporary storage locations. Because the system is completely wireless, no wiring is required and installation can be completed in minutes. For installation situations, such as in metal vehicles or containers, an external antenna is available for optimal reception. The hub itself is not waterproof, but can be easily placed in a waterproof outdoor box.

Key Features

– Suitable for locations without a fixed power supply

– Supplied with internal battery for immediate use

– Supports external energy sources such as solar panels

– Supports two SIM cards for 2G, 3G and 4G/LTE

– Photo verification with compatible MotionCam detectors

– Manage up to 100 Ajax devices and 50 users

– Wireless range up to 2000 meters in open field

– External antenna option for improved signal reception when installed

Reliable communication

The hub has two SIM card slots, allowing the system to automatically switch between networks if connection problems occur. This ensures stable and continuous operation, even in locations with limited coverage.

Photo verification for extra security

When a motion detector like the MotionCam is triggered, the camera takes a series of photos. This allows you to immediately determine whether the alarm is caused by a genuine threat or a false alarm.

Use with external battery – completely autonomous

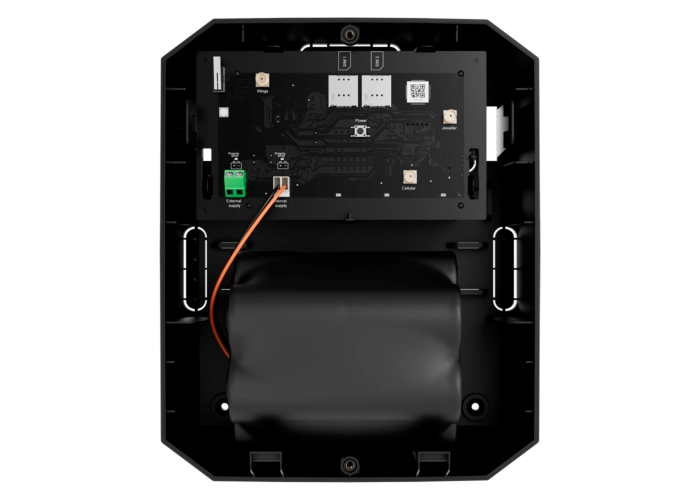

The Ajax Hub BP Jeweller comes with a high-quality 95Ah battery, making the system ready for immediate use without the need for additional accessories. The operating time depends on the selected power mode, as explained below. Thanks to the built-in connection for external power, such as solar panels or a battery pack, the system can also remain operational continuously if desired.

Battery life per power mode

The hub is fully battery powered and offers several power management modes:

– Normal mode: Approx. 2.5 months of operation with active status updates and communication with the Ajax Cloud.

– Power Saver Mode: up to 12 months of autonomy, through delay or temporary disabling of background communications.

This efficient battery life makes this hub particularly suitable for situations where no mains power is available and reliability is essential.

Power Saver Mode – Save energy without compromise

In special energy-saving mode, the hub reduces its energy consumption by contacting the Ajax servers less frequently. This allows the system to remain operational on battery power for longer. In this mode, app control is temporarily disabled to save additional power. The system can then only be controlled locally with a KeyPad or SpaceControl remote controlOnce the system is reconnected to mains power or removed from Power Saver Mode, app and cloud communication will automatically resume.

App notifications remain active when alarm is triggered

Even when the system is in Power Saver Mode and temporarily loses a live connection to the app, you'll still receive a push notification if an alarm occurs as soon as the hub wakes up. This allows you to quickly adjust settings or reactivate the system. This ensures effective security, even while saving energy.

Technical specifications (including battery)

– Communication range: Up to 2000 meters with wireless Ajax devices in open fields

– Supported devices: Maximum 100

– Users: Maximum 50

– Security Groups: Maximum 9

– Communication channels: Two independent SIM card slots for 2G, 3G and 4G/LTE

– Battery life normal use: Up to 2.5 months

– Battery Life Power Saver Mode: Up to 12 months

– Power supply: Internal battery (included)

– Antenna: SMA connector for optional external antenna

Note: separate hub – combine with Ajax detectors

The Ajax Hub BP Jeweller is the heart of the wireless alarm system, but it only works as a complete system when you add one or more Ajax detectors. These include a motion detector (e.g., MotionProtect or MotionCam), door/window contacts (DoorProtect), or glass break sensors. A KeyPad or SpaceControl remote control is also required for local control of the system when using the energy-saving Power Saver Mode. You choose the components you need for your specific situation. All Ajax accessories can be easily connected wirelessly to this hub, allowing you to build a flexible and modular system.

Buy an Ajax Hub BP Jeweller at Sitcon

At Sitcon, we supply this hub complete as standard, including an internal battery, so you can start securing right away. We test all our Ajax products ourselves for functionality, reliability, and ease of use. With physical stores in the Netherlands and Belgium, we're ready to provide advice and support. Whether you need to secure a boat, caravan, construction trailer, or remote shed: with this hub, you get a professional solution that works where other systems can't.
