Kan ik het Ajax touchscreen keypad gebruiken zonder smartphone?

Ja, het keypad werkt zelfstandig met codes, Pass-kaarten en Tags. Een smartphone is handig voor beheer en gebruikersrechten, maar niet nodig voor dagelijkse bediening.

Werkt dit keypad op batterijen en kan ik ook vaste voeding gebruiken?

Ja, u kunt het keypad op batterijen gebruiken of aansluiten op een externe 12V DC voeding. Batterijvoeding is ideaal voor montage zonder bekabeling en externe voeding is praktisch bij intensief gebruik.

Hoe veilig is het gebruik van Pass-kaarten en Tags?

Pass-kaarten en Tags gebruiken versleutelde identificatie en zijn bedoeld om kopiëren of misbruik te voorkomen. In de Ajax-app kunt u per gebruiker rechten instellen en een kaart of tag blokkeren bij verlies.

Kan ik zien wie het alarmsysteem heeft in- of uitgeschakeld?

Ja, acties kunnen per gebruiker worden geregistreerd in de Ajax-app, zodat u kunt terugzien wie het systeem heeft bediend.

Is het keypad geschikt voor montage bij een buitendeur?

Het keypad is IP55 en beschermd tegen stof en spatwater. Voor buitenmontage is een beschutte plek aan te raden; binnen bij de entree is doorgaans de meest gekozen plaatsing.

Ajax Keypad Touchscreen White SMART

SKU	6026

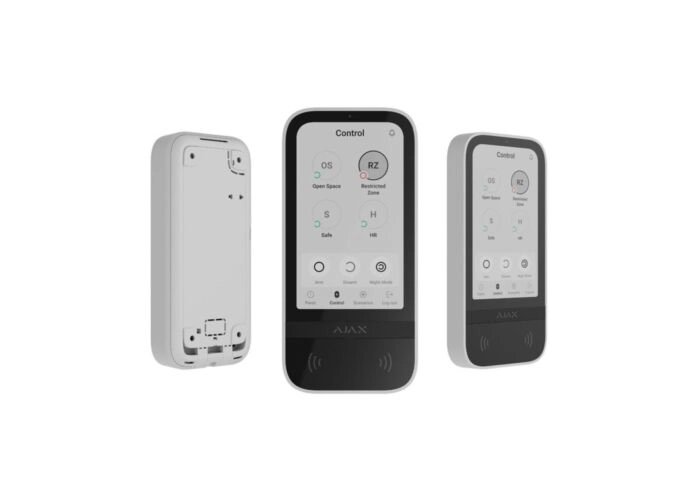

This Ajax touchscreen keypad makes operating your Ajax alarm system clear and simple. The screen displays the system's status at a glance, such as whether the alarm is armed and whether any doors or windows are open. This keypad also features a built-in speaker that can provide clear audible alerts, for example, when an entry delay is triggered or a configured zone is opened.

The KeyPad TouchScreen Jeweller is designed for intuitive operation with an interface that closely resembles the Ajax app. Users can control the system with a code, but also with a Pass card, Tag, or smartphone. This makes the keypad ideal for homes, businesses, and locations with multiple users, where you can assign and easily modify individual permissions.

Operation and ease of use

The 5-inch IPS touchscreen is bright, responsive, and designed to display key information at a glance. Its multilingual interface also makes the control panel easy to use in environments where multiple languages are used.

5-inch IPS touchscreen for clear status display
Operation via code, Pass, Tag and smartphone
Multilingual interface with support for 32 languages
Sound notifications via built-in speaker

Identification and access management

This keypad supports multiple authentication methods, allowing you to choose the best fit for each user. Consider a fixed code for regular users and a Pass or Tag for employees, family members, or temporary access. In the app, you can manage permissions and see who has operated the system.

Support for Pass cards, Tags and access codes
Fast and secure user identification via DESFire and BLE
Manage access rights per user in the Ajax app

Power and placement

The KeyPad TouchScreen Jeweller can be powered by batteries or an external 12V DC power supply. Battery power is convenient for quick installation without wiring. External power is practical for locations where the keypad is used intensively, or if you prefer not to schedule a battery change.

Battery operated or via external 12V DC power supply
Long battery life up to approximately 1.5 years (depending on usage)
Automatic brightness adjustment for comfortable use during the day and in the evening

Security and reliability

The keypad is designed for reliable operation and has built-in security features such as tamper protection. In the event of an attempted removal or tampering, a notification can be sent immediately. Communication is encrypted, and the system is designed to prevent misuse, such as code guessing.

Sabotage protection with notifications for removal attempts
Encrypted communication within the Ajax system
Reliable in temperature range from -10°C to +40°C
IP55 for extra protection against dust and splash water

Smart home and scenarios

Besides security, the touchscreen keypad can also help control scenarios within the Ajax system. For example, you can initiate automations linked to the alarm status, such as switching off lights or closing shutters when the system is armed.

Activate scenarios via the touchscreen
Control of groups and linked automations

Technical specifications

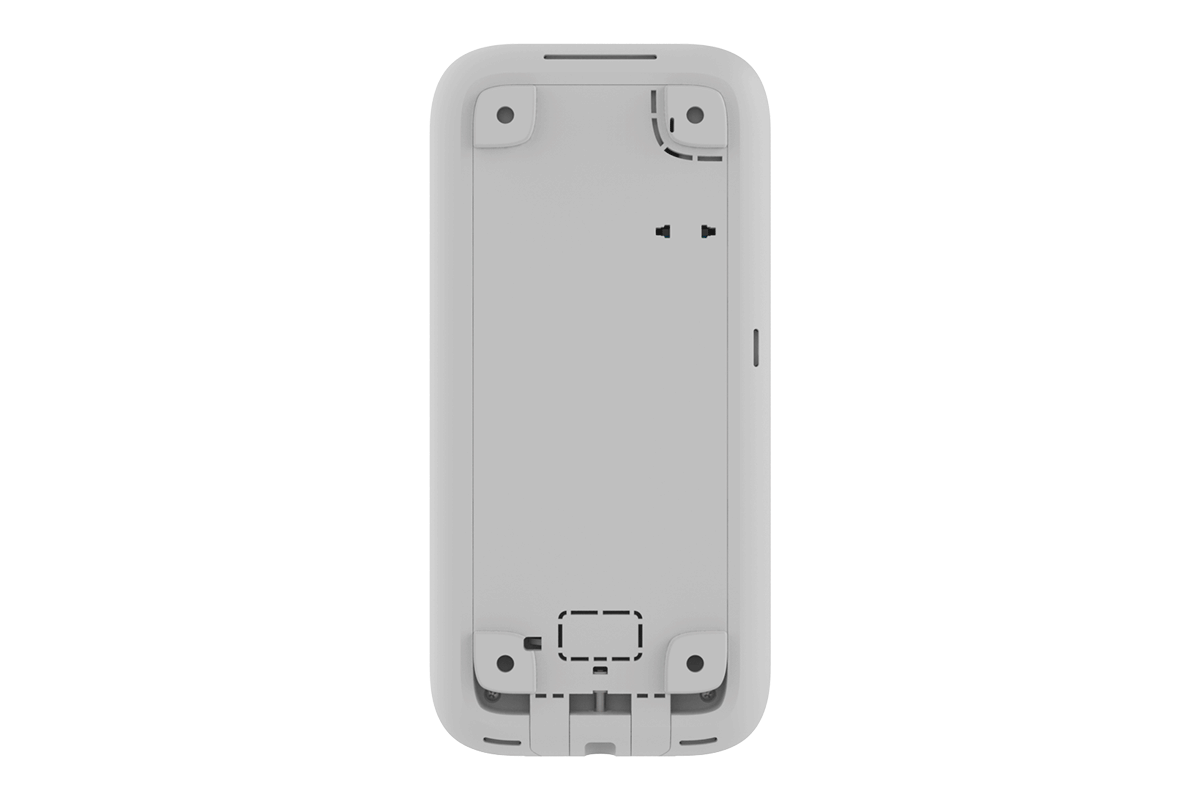

The compact housing is suitable for neat mounting in a highly visible location, such as an entrance or hallway. The screen is bright and designed for everyday use.

Dimensions: 165 × 113 × 20 mm
Weight: 267 g
Display: 5-inch IPS (480 × 854 pixels)
Protection class: IP55
Communication range: up to 1700 meters (depending on situation)

Compatibility

The KeyPad TouchScreen Jeweller is suitable for use within Ajax systems with compatible hubs. This makes the keypad suitable for both residential and commercial installations.

Hub 2 (2G)
Hub 2 (4G)
Hub 2 Plus

Package contents

This set is delivered complete for direct mounting.

1 × Ajax Touchscreen Keypad white
Mounting material

Buy Ajax KeyPad TouchScreen Jeweller at Sitcon

Since 2007, Sitcon has specialized in high-quality security solutions for both residential and professional use. All products are internally tested for reliability and functionality in real-world settings. Sitcon also offers support from its stores in Nieuwegein and Maaseik and is a member of Thuiswinkel Waarborg.

FAQ – Frequently Asked Questions

Can I use the Ajax touchscreen keypad without a smartphone?

Yes, the keypad works completely independently with codes, Pass cards, and tags. A smartphone is useful for management and user permissions, but not necessary for daily operation. This also makes it suitable for users who prefer not to use an app.

Does this keypad run on batteries or can I also use a solid power supply?

Yes, you can run the keypad on batteries or connect it to an external 12V DC power supply. Battery power is ideal for quick installation without wiring. External power is practical for intensive use or if you prefer not to schedule battery changes.

How safe is it to use Pass cards and Tags?

The Pass and Tag use encrypted identification and are designed to prevent copying or misuse. In the Ajax app, you can also set permissions per user and immediately block a card or tag if lost. This way, you maintain control over who has access.

Can I see who armed or disarmed the alarm system?

Yes, actions can be recorded per user in the Ajax app. This is useful for families and especially for businesses, as you can see exactly who has operated the system. This provides additional clarity and helps manage access.

Is the keypad suitable for mounting on an outside door?

The keypad has an IP55 rating and is protected against dust and splash water. For long-term outdoor installation, a sheltered location under a canopy is usually best. Indoors, near the entrance, is the most popular placement in practice.
