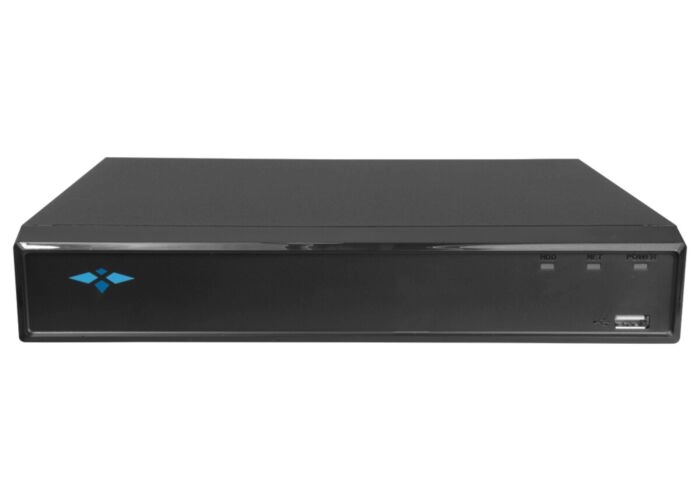

HD (Coax) - 8 channel recorder
Description: HD (Coax) - 8 channel recorder
This 8-disc hard disk video recorder is the ideal storage combination for any security CCTV camera. The video recorder can record the images of our security cameras or hidden cameras for a long time. The included 2000 GB hard disk can record up to 4 weeks with 8 cameras in high quality.
Applications 8 channel digital video recorder
The 8 channel digital video recorder can be used with all security cameras and forms the basis of any CCTV camera system. This digital video recorder supports 8 cameras and can simultaneously record them continuously, on motion detection or on set timer. At the back of the digital video recorder is a VGA + HDMI output with which the digital video recorder can be connected to a PC monitor. The images can be displayed directly on this, but recorded images can also be viewed in this way. The digital video recorder also has a network connection, with which the digital video recorder can be connected to the router / modem with a network cable. In this way, after making a few settings, it is possible to view the images from the digital video recorder live from any computer with internet or a smartphone.
The digital video recorder has extensive motion detection which can be set so that motion must be detected on the entire screen or only on a specific part of the screen. Furthermore, this recorder has a pre-recording function, which means that the digital video recorder continuously records for 10 seconds and 'sticks' to the movement. The advantage of this is that you have recorded the entire movement and do not miss anything.
Access via another computer
Once the digital video recorder is connected to the internet, it can be accessed remotely. From a computer this is possible with the web browser, without the need for additional software. So when the recorder is placed in your home, it is possible to view the images directly from work.
Access via a mobile phone
It is also possible to access the recorder from an iPhone or Android smartphone. Multiple users can log in simultaneously.
The recorder can simultaneously display live image, record images, play back, back up and be accessed from the network without affecting operation.
Approach via network
The digital video recorder can be connected directly to a (computer) monitor via the VGA or HDMI output to view the live or recorded images. The DVR can also be accessed remotely from a distance
H.264 Video Compression
H.264 compression technology stands for improved quality of the images and less use of the storage capacity of the video images.
Full HD recording resolution
Unlike most cheaper digital video recorders that only record in .CIF / D1 format, this recorder can record 8 cameras in Full HD quality simultaneously. The advantage of this is sharper and smoother recorded images.
2000 GB Hard drive
We deliver the digital video recorder as standard with a 2000 GB hard disk which we have already installed and set up correctly. On this large hard disk it is possible to record for weeks with 8 high resolution security cameras.
Automatic recovery in the event of system failure:
If the power fails unexpectedly due to, for example, a power failure, the digital video recorder will reset itself to the settings it was before the power failure.
Hard disk video recorder features:
- H.264 High Profile video compression
- Full HD recording 1920 x 1080 pixels
- AHD, 1920 x 1080p
- Hybrid: AHD / CVI / CVBS / TVI
- Both analogue and digital Coax
- 8 channel BNC input
- 1 channel BNC output
- HDMI & VGA output: 1080P
- 8 channel RCA audio input
- 1 channel RCA audio output
- G711A audio compression
- 1 channel alarm input
- 1 channel alarm output
- 2 USB ports (mouse + 2.0 port)
- 1 x RJ45 10M / 100M ethernet port
- 1 x RS485 port
- Support for 17+ PTZ protocols
- 1 hard drive support
- TCIP, PPOE, DDNS and NTP network protocol
- Smartphone access: iPhone, Android
- 12V, 2A adapter
- 260 x 234 x 45 cm
Content package digital video recorder
1 x Hard disk recorder 8 channels
1 x 2000 GB HDD
1 x Adapter
1 x Mouse
1 x Remote control
1 x Manual
Specifications: HD (Coax) - 8 channel recorder
|Resolution:||1920 x 1080 (Full HD), 1280 x 720 (HD)|
|Filming through glass:||No|
|Looking from a distance:||Yes|
|Software / APP:||Windows, OS X, iOS, Android|
|Video out:||BNC AHD (Coax), BNC analoog (Coax)|
|Recording function:||Cloud, Hard drive|
|Max. memory:||2 TB|
|Meegeleverd geheugen:||2 TB|
|Motion detection:||Post motion, Pre motion, Yes|
|Alarm notification:||Push notification|
