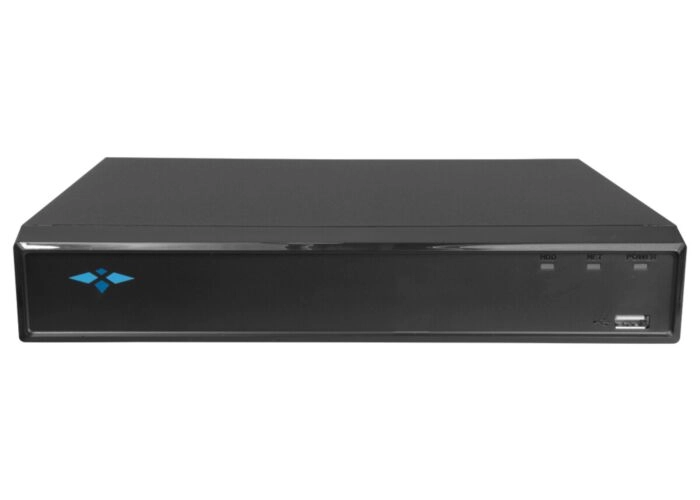

HD (Coax) - 4 channel recorder
Description: HD (Coax) - 4 channel recorder
This hard disk video recorder or 4 channel DVR is the ideal storage combination for any CCTV security camera camera. The video recorder can record the images from our security cameras or hidden cameras for a long period of time. For example, with standard 1000 GB hard disk installed up to 2 weeks with 4 cameras can be recorded in high quality.
Applications 4 channel digital video recorder
The 4 channel digital video recorder can be used with all security cameras and forms the basis of any CCTV camera system. This digital video recorder supports 4 cameras and can simultaneously record them continuously, on motion detection or on set timer. At the back of the digital video recorder is a VGA output with which the digital video recorder can be connected to a PC monitor. The images can be displayed directly on this, but recorded images can also be viewed in this way. The digital video recorder also has a network connection, with which the digital video recorder can be connected to the router / modem with a network cable. In this way, after making some settings, it is possible to view the images from the digital video recorder live from any computer with an internet connection or from a smartphone such as iPad, iPhone, Android, Blackberry or Windows phone.
The digital video recorder has extensive motion detection which can be set so that motion must be detected on the entire screen or only on a specific part of the screen. Furthermore, this recorder has a pre-recording function, which means that the digital video recorder continuously records for 10 seconds and 'sticks' to the movement. The advantage of this is that you have recorded the entire movement and do not miss anything.
Access via another computer
Once the digital video recorder is connected to the internet, it can be accessed remotely. From a computer this is possible with the web browser, without the need for additional software. So when the recorder is placed in your home, it is possible to view the images directly from work.
Access via a mobile phone
It is also possible to access the recorder from an iPhone, BlackBerry, J2ME, Android or WinCE smartphone. Multiple users can log in simultaneously.
The recorder can simultaneously display live image, record images, play back, back up and be accessed from the network without affecting operation.
Approach via network
The digital video recorder can be connected directly to a (computer) monitor via the VGA output to view the live or recorded images. The DVR can also be accessed remotely from a distance
H.264 Video Compression
H.264 compression technology stands for improved quality of the images and less use of the storage capacity of the video images.
Full HD recording resolution
Unlike most cheaper digital video recorders that only record in .CIF / D1 format, this recorder can record 4 cameras in Full HD quality simultaneously. The advantage of this is sharper and smoother recorded images.
1000 or 2000 GB Hard disk
We deliver the digital video recorder as standard with a 1000 GB hard disk. Although 4 cameras can be used to record for 3 weeks, it is possible to order the digital video recorder with a 2 TB hard disk at an additional cost. This is then correctly installed and set up by us.
Automatic recovery in the event of system failure:
If the power fails unexpectedly due to, for example, a power failure, the digital video recorder will reset itself to the settings it was before the power failure.
Hard disk video recorder features:
- H.264 High Profile video compression
- Full HD recording 1920 x 1280 pixels
- Also analog (Coax) support
- 960H & AHD technology support
- 4 channel BNC input
- 1 channel BNC output
- HDMI & VGA output: 1080P
- 4 channel RCA audio input
- 1 channel RCA audio output
- 8 kHz * 16bit, ADPCM audio compression
- 4 channel alarm input
- 1 channel alarm output
- 2 USB ports (mouse + 2.0 port)
- 1 x RJ45 10M / 100M ethernet port
- 1 x RS485 port
- Support for 17+ PTZ protocols
- 1 hard drive support
- TCIP, PPOE, DDNS and NTP network protocol
- Smartphone access: iOS & Android
- 12V, 2A adapter
- 260 x 234 x 45 cm
Content package digital video recorder
1 x Hard disk recorder
1 x 1000 or 2000 GB HDD
1 x Adapter
1 x Mouse
1 x Remote control
1 x Manual
Specifications: HD (Coax) - 4 channel recorder
|Resolution:||1920 x 1080 (Full HD), 1280 x 720 (HD)|
|Filming through glass:||No|
|Looking from a distance:||Yes|
|Software / APP:||Windows, OS X, iOS, Android|
|Video out:||BNC AHD (Coax), BNC analoog (Coax)|
|Recording function:||Cloud, Hard drive|
|Max. memory:||2 TB|
|Meegeleverd geheugen:||1 TB|
|Motion detection:||Post motion, Pre motion, Yes|
|Alarm notification:||Push notification|
