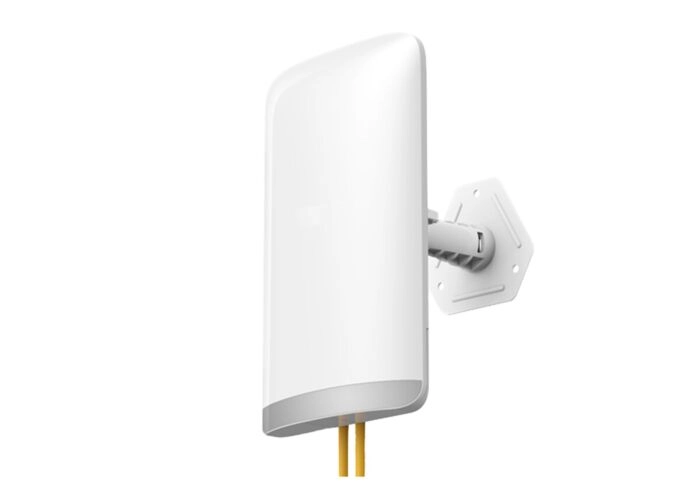

Point to Point WiFi Bridge PRO
Point to Point WiFi Bridge PRO
- Customers rate us 8.6 based on 806 reviews
- Experienced customer service and 2 year warranty
- Specialist since 2007. Member of Thuiswinkel Waarborg
Specifications: Point to Point WiFi Bridge PRO
| SKU | 8275 |
|---|
Pros and cons :
- Long-distance connection up to 5 km
- Dual-Band Wi-Fi Support
- Weatherproof (IP65)
- Easy Installation with PoE
- No built-in battery
The Point-to-Point WiFi Bridge PRO is a powerful wireless outdoor bridge for bridging networks over long distances without cabling. This solution is specifically designed for stable point-to-point and point-to-multipoint connections of up to approximately 5 kilometers. This makes the system ideal for locations where running network cables is neither possible nor practical, such as warehouses, construction sites, farms, industrial estates, and recreation parks.
The bridge operates on both the 2.4 GHz and 5 GHz frequency bands, offering a good balance between range and speed. Thanks to its robust, weatherproof housing, the Point-to-Point WiFi Bridge PRO is suitable for extended outdoor use in a variety of weather conditions.
How does the Point to Point WiFi Bridge PRO work?
The set consists of two units positioned opposite each other with a clear line of sight between them. One unit connects to the internet source or existing network, while the other unit provides the network on the receiving end. The connection between the two units is completely wireless via long-range Wi-Fi. Power is supplied via Power over Ethernet (PoE), requiring only one network cable per unit.
Thanks to the integrated cloud management functionality, configuration, monitoring, and troubleshooting can be performed remotely. This simplifies installation and management, even across multiple locations simultaneously.
Key Features of the Point to Point WiFi Bridge PRO
– Wireless network connection up to approximately 5 kilometers
– Support for both 2.4 GHz and 5 GHz Wi-Fi
– Suitable for point-to-point and point-to-multipoint applications
– Power supply via 24V Passive PoE
– Weatherproof IP65 housing for outdoor use
– Cloud-based management for remote settings and monitoring
– Stable connection for data traffic, cameras and networks
Technical specifications
– Frequency: 2.4 GHz and 5 GHz dual band
– Wireless speed: up to approx. 300 Mbps (5 GHz)
– Maximum range: up to approximately 5 kilometers (unobstructed view)
– Power supply: 24V Passive PoE
– Antennas: integrated high-power antennas
– Security: WPA2 encryption
– Housing: IP65 weatherproof
– Operating temperature: -30 °C to +65 °C
– Dimensions: 230 x 132 x 48 mm
– Weight: approximately 500 grams per unit
Applications of the Point to Point WiFi Bridge PRO
The Point-to-Point WiFi Bridge PRO is widely used for wirelessly connecting networks between buildings or sites where physical cables are not feasible. Examples include remote camera surveillance, internet connections between warehouses, network expansion on agricultural businesses, or temporary networks on construction sites. This solution is also used at recreation parks and campsites for stable Wi-Fi over longer distances.
Package contents
– 2 × Point to Point WiFi Bridge PRO units
– 2 × Mounting brackets
– 2 × 24V PoE injectors
– 2 × Gigabit Ethernet cables (1 meter)
– 1 × Installation Manual
Buy Point to Point WiFi Bridge PRO at Sitcon
Sitcon has specialized in security and network solutions for professional use since 2007. All systems are field-tested for reliability, stability, and compatibility. You are welcome to visit our stores in Utrecht (Netherlands) and Maaseik (Belgium) for personalized advice or a demonstration. Sitcon is affiliated with Thuiswinkel Waarborg (Home Shopping Guarantee) for added peace of mind with your purchase.
Important about use
For stable operation, a clear line of sight between the two units is essential. Obstacles such as buildings, trees, or vehicles can affect range and performance. For optimal results, it's recommended to carefully adjust the mounting height and orientation.
Frequently Asked Questions about the Point to Point WiFi Bridge PRO
Do I need a lot of networking knowledge to install this kit?
The basic installation is relatively simple and is explained step by step in the manual. For simple point-to-point connections, limited networking knowledge is sufficient. For more complex network configurations or connections to existing corporate networks, it may be advisable to engage an IT specialist or installer.
Does the Point to Point WiFi Bridge PRO always have a range of 5 kilometers?
The maximum range of approximately 5 kilometers applies under clear visibility and optimal conditions. Obstacles such as buildings, trees, and height differences can reduce the effective range. In practice, testing is usually carried out first at the desired location to determine the best mounting position.
Is this solution suitable for IP cameras and NVRs?
Yes, the Point-to-Point WiFi Bridge PRO is often used to wirelessly connect IP cameras, recorders (NVRs), and other network devices. The available bandwidth is more than sufficient for multiple Full HD cameras, provided the connection is properly aligned and the network is configured correctly.
Can I connect multiple locations or buildings (point-to-multipoint)?
In addition to a traditional point-to-point connection, this solution can also be used in a point-to-multipoint setup. This involves connecting multiple units at a single central location. This requires additional units and a slightly more extensive configuration, but offers considerable flexibility for larger sites.
Can the Point to Point WiFi Bridge PRO be left outside permanently?
The units are housed in an IP65 weatherproof enclosure and are designed for permanent outdoor use. It is important to mount the units securely and preferably in a sheltered location away from direct wind and rain. Regular visual inspection of the mounting points is recommended.
