Mobile camera set - Box + zoom lens

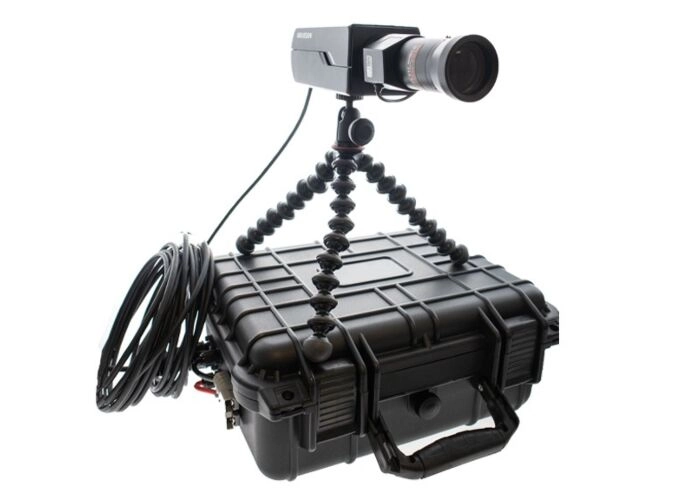

The 4G Mobile Zoom Camera Set – Box Camera Pinhole is a professional camera set, built in-house by Sitcon, designed for situations requiring sharp images at long distances and where there is no fixed power or network. The set comes in a robust, waterproof carrying case with an integrated 4G router, POE injector, high-quality Li-ion battery, and a complete Full HD box camera with a 10–120mm varifocal zoom lens. This allows you to view live video from virtually any location, record, and zoom up to approximately 200 meters.

How does the mobile zoom camera set work?

The case contains all the electronics neatly pre-assembled, including the 4G router with SIM card, POE injector, and all connections. On location, you place the box camera on the included tripod and connect the camera cable to the connector on the outside of the case. Then, connect the Li-ion battery, and the system starts automatically. Within minutes, the system connects to the 4G network, allowing you to watch live, view recordings, and adjust settings via the smartphone app. Because the system works via the internet, there's no distance limit: you can access it from anywhere in the world.

200 meters of observation thanks to a professional zoom lens

The included 10–120mm lens offers an exceptionally wide zoom range, making the system suitable for long-distance surveillance. Consider, for example, monitoring access roads, harbors, terrain, or situations where you need to be able to recognize details at a great distance. The Full HD box camera features a highly light-sensitive 1/1.8” Sony sensor (0.001 lux), enabling visible images in low-light conditions without the need for IR LEDs. This makes the camera ideal for observations where stealth monitoring is required.

Powerful Li-ion battery for long-lasting stand-alone operation

The set comes standard with a professional 190Ah Li-ion battery. This allows the complete kit – camera, 4G router, and electronics – to operate autonomously for approximately 12 to 13 days on a single charge. Thanks to the high-quality cells, the voltage remains stable, ensuring the camera continues to function reliably even during extended sessions. Additional batteries are available for extended use, allowing you to easily swap batteries on-site without changing the configuration.

Applications of the mobile zoom camera set

Because the set works completely stand-alone and is designed for long-term use, it can be used for a wide range of professional observation purposes:

- Observation at ports, (temporary) access roads and outside areas
- Monitoring of remote areas or objects without power supply
– Temporary monitoring for construction projects or technical installations
– Studies that require covering large distances
– Securing locations where full camera installations are not possible

Key Features

– Rugged waterproof carrying case with pre-installed electronics
– Full HD box camera with 10–120 mm zoom lens (up to ±200 meters observation)
– Very light-sensitive Sony CMOS sensor (0.001 lux) – clearly visible in low light
– 4G router integrated for worldwide access
– 190Ah Li-ion battery for approximately 12–13 days of autonomous use
– Support for microSD recording up to 128 GB
– Motion detection and push notifications
– Video formats: H.264, Mpeg-4, Mjpeg
– No IR required – ideal for stealth observation

Package contents

– 1× 4G router (pre-assembled)
– 1× POE injector
– 1× SIM card (if selected as an option)
– 1× Box camera with 10–120 mm zoom lens
– 1 x 8 meter camera cable
– 1× 64 GB microSD card
– 1× 190Ah Li-ion battery with charger
– 1× Tripod
– 1× Waterproof carrying case

Buy 4G Mobile Zoom Camera Set at Sitcon

This mobile surveillance system is fully assembled, built, and tested by Sitcon. Thanks to our in-house assembly, we can fully control the quality, reliability, and configuration. Since 2007, we have been providing professional security solutions to private individuals, businesses, and government agencies. Our stores in Utrecht (Netherlands) and Maaseik (Belgium) offer you the opportunity to view the system in real life and receive expert advice. As an affiliated member of Home Shopping Guarantee You are assured of secure payment and clear warranty conditions.

Get started in 1-2-3 steps

1. Mount the camera on the tripod
Place the box camera on the tripod and point the lens at the desired location.

2. Connect the camera and battery to the case
Connect the camera cable and the Li-ion battery to the terminals on the outside of the case.

3. Open the app and view live images
The 4G router connects automatically. In the app, you can watch live, review recordings, and change settings.

Plus points

• Up to approximately 200 meters of observation thanks to a professional zoom lens
• Very light-sensitive Sony sensor (0.001 lux), no IR required
• Approximately 12–13 days of autonomous use with a 190Ah Li-ion battery
• Worldwide 4G access via smartphone app
• Completely built and tested by Sitcon
• Robust waterproof case for mobile use
• Suitable for long-distance surveys and remote locations

• No built-in IR – depends on ambient light
• Not suitable for indoor areas without residual light
• Batteries are heavy and less suitable for handheld use
• No two-way audio

Frequently asked questions about the mobile zoom camera set
