12V to 5V Mini USB Converter – DC-DC Converter
12V to 5V Mini USB Converter – DC-DC Converter
- Customers rate us 8.6 based on 805 reviews
- Experienced customer service and 2 year warranty
- Specialist since 2007. Member of Thuiswinkel Waarborg
Specifications: 12V to 5V Mini USB Converter – DC-DC Converter
| SKU | 8101 |
|---|

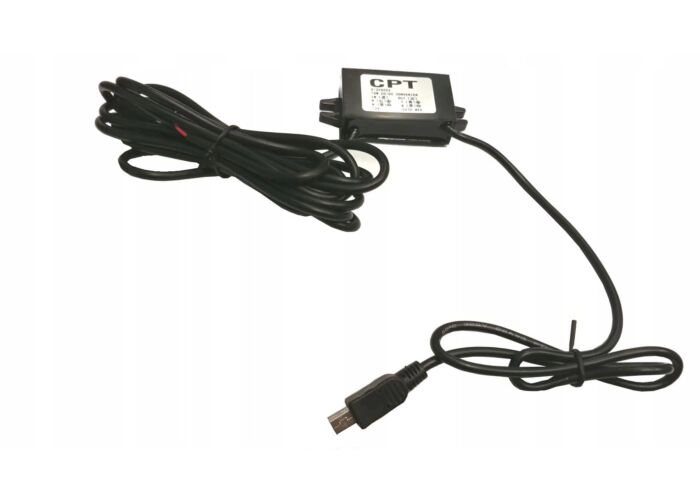

This compact DC-DC converter converts a supply voltage from 12V to 40V to a stable 5V output with mini USB connection. This allows you to supply devices with a mini USB port directly from a vehicle battery or other DC installation.
Many equipment such as dashcams, GPS systems, cameras and data loggers use a mini USB connection for power. With this inverter you can permanently connect these devices without having to rely on batteries or separate USB adapters.
Stable mini USB power supply from 12V to 40V
Vehicles and technical installations usually have a 12V or 24V power system. This DC-DC converter automatically reduces the voltage to a stable 5V output, so that devices with mini USB can be safely powered.
Thanks to the wide input voltage range from 12 to 40 volts, the converter is suitable for various vehicles and installations.
Ideal for dashcams and GPS equipment
A common application is powering dashcams and GPS systems with a mini USB connection. Installing the converter behind the dashboard allows the device to start automatically as soon as the vehicle is turned on.
This ensures a neat installation without loose adapters or chargers in the cigarette lighter.
Suitable for vehicles and technical installations
The converter supports an input voltage of 12V to 40V and can therefore be used in cars, trucks, campers and boats. This makes it suitable for both private and professional applications.
– Permanent power supply for dashcams with mini USB connection
– Power supply for GPS systems and navigation equipment
– Installation in cars, RVs and trucks
– Power supply for data loggers or small cameras
– Use in technical installations or boats
Compact design for concealed installation
Due to its compact size, this converter can easily be concealed behind a dashboard, in a panel or in a technical cabinet. This keeps the installation neat and safe.
The inverter is connected via two power wires, after which the mini USB connector can be placed directly in the device.
Technical specifications
– Input voltage: 12 – 40V DC
– Output voltage: 5V DC (stabilized)
– Maximum output current: 2.1A
– Output: mini USB male connector
– Input: fixed connection wires (red + / black –)
Installation
Installation is simple and can usually be completed within minutes. In vehicles, a switched power line is often chosen so that connected equipment only receives power when the vehicle is active.
– Connect the red wire to a +12V to +40V power supply
– Connect the black wire to ground (–)
– Place the converter behind the dashboard or in a panel
– Connect the mini USB connector to the device
Package contents
– 1x DC-DC mini USB converter 12–40V to 5V
– Brief connection instruction (Manual)
Buy Mini USB DC-DC converter at Sitcon
Since 2007, Sitcon has specialized in security and technical solutions for private and business use. All products are tested internally for functionality, reliability and ease of use before they are included in the range.
You can easily order online or visit our stores in Nieuwegein or Maaseik for personal advice. Sitcon is affiliated with Thuiswinkel Waarborg.
FAQ – Frequently asked questions about the mini USB DC-DC converter
What is a mini USB converter used for?
A mini USB converter is used to supply devices with a mini USB connection with power via a vehicle battery or other DC installation. This is often used for dashcams, GPS systems and other electronic equipment that requires a stable 5V USB power supply.
Does this converter work in both 12V and 24V vehicles?
Yes, the converter supports an input voltage of 12 to 40 volts. This allows it to be used in cars, trucks, RVs and boats. The output always remains a stable 5V supply.
Can I permanently connect a dashcam with this?
Yes, this is a common application. By connecting the converter to a switched power line, a dashcam can start automatically when the vehicle is turned on. This ensures a neat installation without loose adapters.
Is 2.1A enough for most devices?
For many dashcams, GPS systems and small cameras, 2.1A is more than sufficient. Always check the power specifications of the device to ensure it falls within this current limit.
Can the converter remain permanently connected?
Yes, the converter is designed for permanent installation. It is advisable to connect it to a switched power supply line so that connected equipment is only active when the system is switched on.
